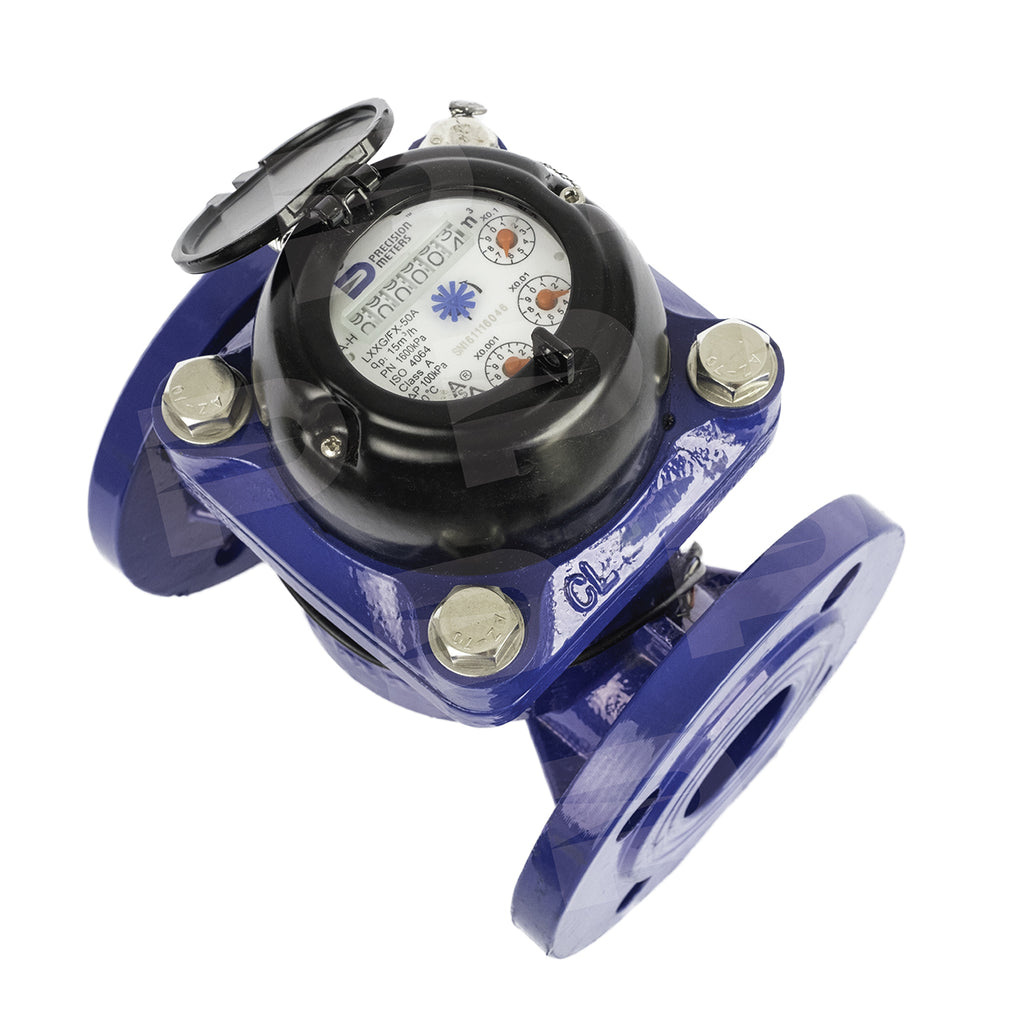

The Lxxg Irrigation Meter Is Available In Sizes 50mm To 300mm And Larger Sizes Are Available On Request. Meters From Sizes 50mm To 100mm Are Fully Compliant With Sans 1529 1:1 Class A And Tested In A Sanas Accredited Laboratory In South Africa, Before Distribution. A Verification Certificate Is Available On Request. Meters From Size 150mm To 300mm Comply With Iso4064, Class A. This Range Comes Standard With A Reed Switch For Pulsed Output And Can Therefore Be Converted To A Smart Water Meter For Remote Meter Reading Purposes. The Lxxg Irrigation Meter Is Suitable For The Measurement Of Raw Water Of Up To 50 Deg C. The Irrigation Meter Is Suitable For A Maximum Of 1600 K Pa. These Meters Are Flanged And Drilled Standard To Their Pressure Which Is Pn16, However Td Drilling Is Also Available On Request. The Irrigation Meters Come Standard With A Set Of Gaskets. The Irrigation Meter Body And Flanges Are Made Of Cast Iron With An Epoxy Coating For Protection. The Meter Mechanism Is Removable Without Having To Remove The Meter Body From The Pipeline And Can Then Be Fitted With A Pre Calibrated Meter Mechanism For Replacement Should It Be Required. This Meter Is For Horizontal Installation With The Dial In An Upright Position Only, And Installation Guidelines Are Supplied With The Meter To Ensure The Correct Meter Installation. Each Meter Comes Packaged Complete In A Wooden Crate. **Do Not Remove Meter From Installaion As That Will Void Warrenty.
