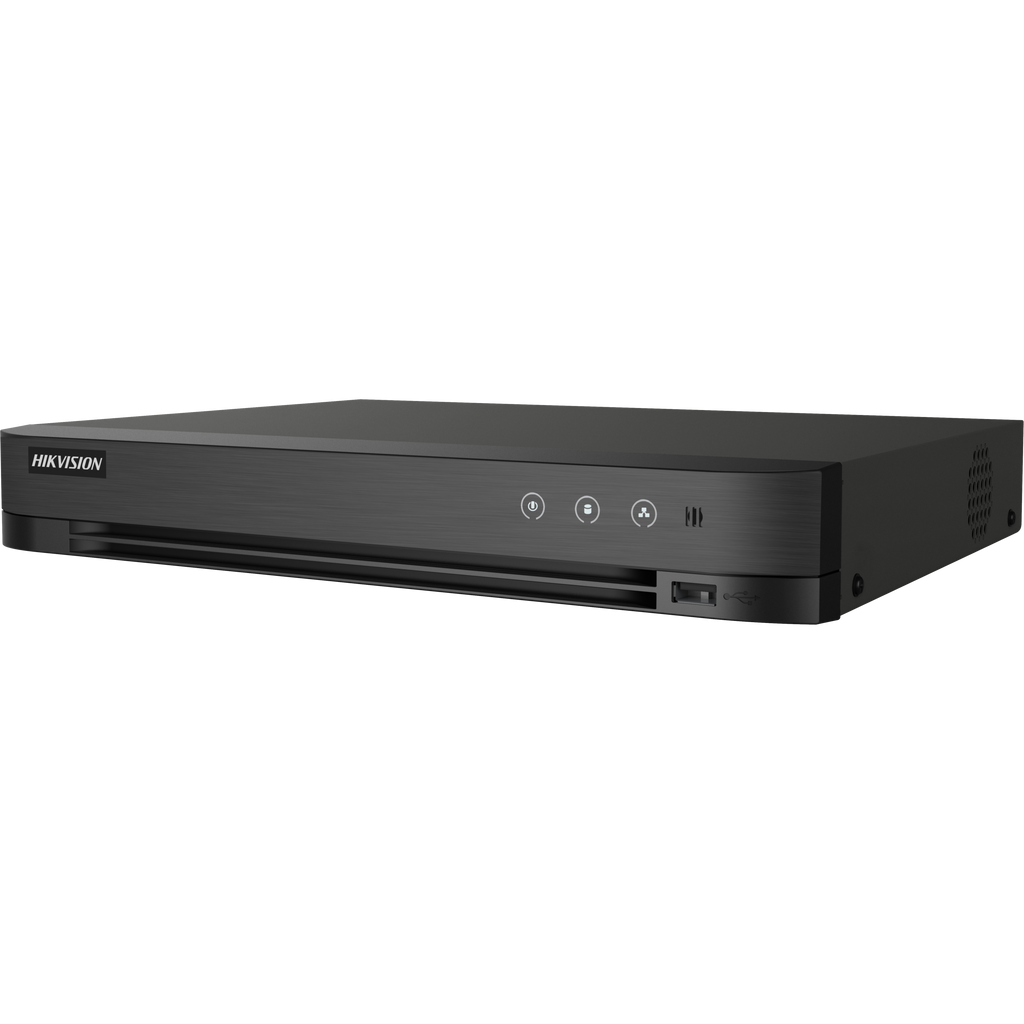

Hikvision Eco AcuSense 8CH 1080p DVR – 1 SATA, 12TB

Supports 2-ch facial recognition, 4-ch advanced perimeter protection, or 8-ch Motion 2.0

Features

• 8 analog channels, 1U DVR with 1 HDD

• Deep learning-based 2-ch facial recognition or 4-ch perimeter protection

• Supports 4-ch AcuSearch Technology

• Efficient H.265 Pro+ compression

• Encoding up to 3K/5M Lite @ 12 fps

• Adaptive HDTVI/AHD/CVI/CVBS/IP inputs

• Up to 12 IP cameras

• Two-way audio over coaxial for all channels

Specifications

Facial Recognition

• Up to 16 face libraries, face picture comparison/search for 2-ch

Motion Detection 2.0

• Human/vehicle classification, reduces false alarms

• Quick search by object or event type

Perimeter Protection

• Human/vehicle analysis up to 4-ch

• Note: Facial recognition, Motion 2.0, and perimeter protection cannot run simultaneously

Video & Audio

• IP Input: 4-ch (up to 12-ch), up to 6 MP

• Analog Input: 8-ch BNC

• HDTVI/AHD/CVI/CVBS support

• HDMI/VGA simultaneous output, CVBS output included

• Audio: 8-ch RCA input via coax, 1-ch RCA output, 1-ch two-way audio

• Synchronous playback: 8-ch

Recording & Compression

• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Resolution: 3K/5 MP/4 MP/1080p/720p/VGA/WD1/4CIF/CIF

• Frame rate: Main stream 3K/5 MP Lite @12 fps, sub-stream WD1/CIF 12–30 fps

• Video bitrate: 32 Kbps – 6 Mbps

Network & Interfaces

• Bandwidth: 96 Mbps, Remote connections: 64

• Protocols: TCP/IP, DHCP, Hik-Connect, DDNS, NTP, ONVIF, HTTPS, UPnP™

• RJ45 10/100 Mbps, Wi-Fi via USB dongle

• RS-485, 1 × SATA (up to 10 TB), USB 2 × 2.0

General

• Power: 12 VDC, 1.5 A, ≤18 W (without HDD)

• Temp/Humidity: -10 °C to 55 °C, 10–90%

• Dimension: 319 × 236 × 48 mm

• Weight: ≤1.78 kg (without HDD)
