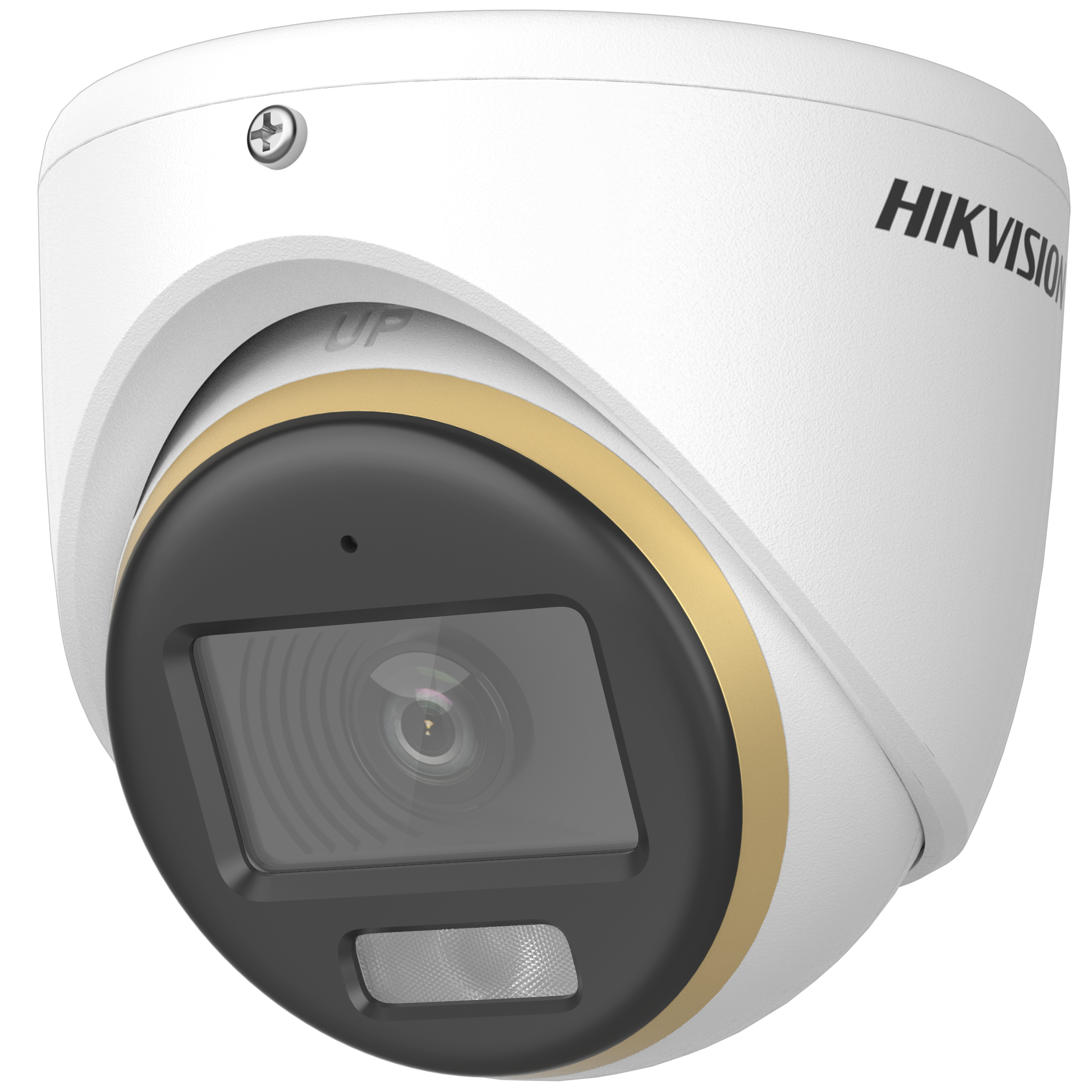

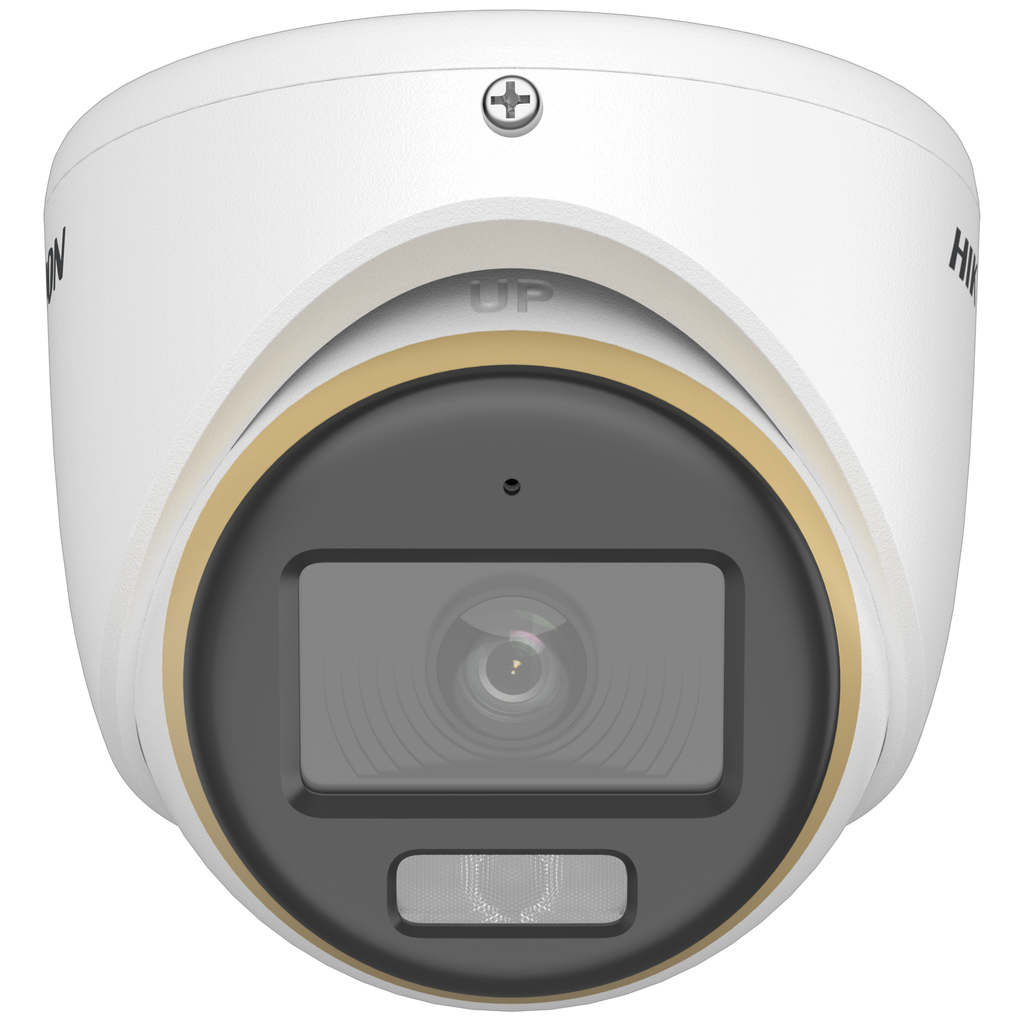

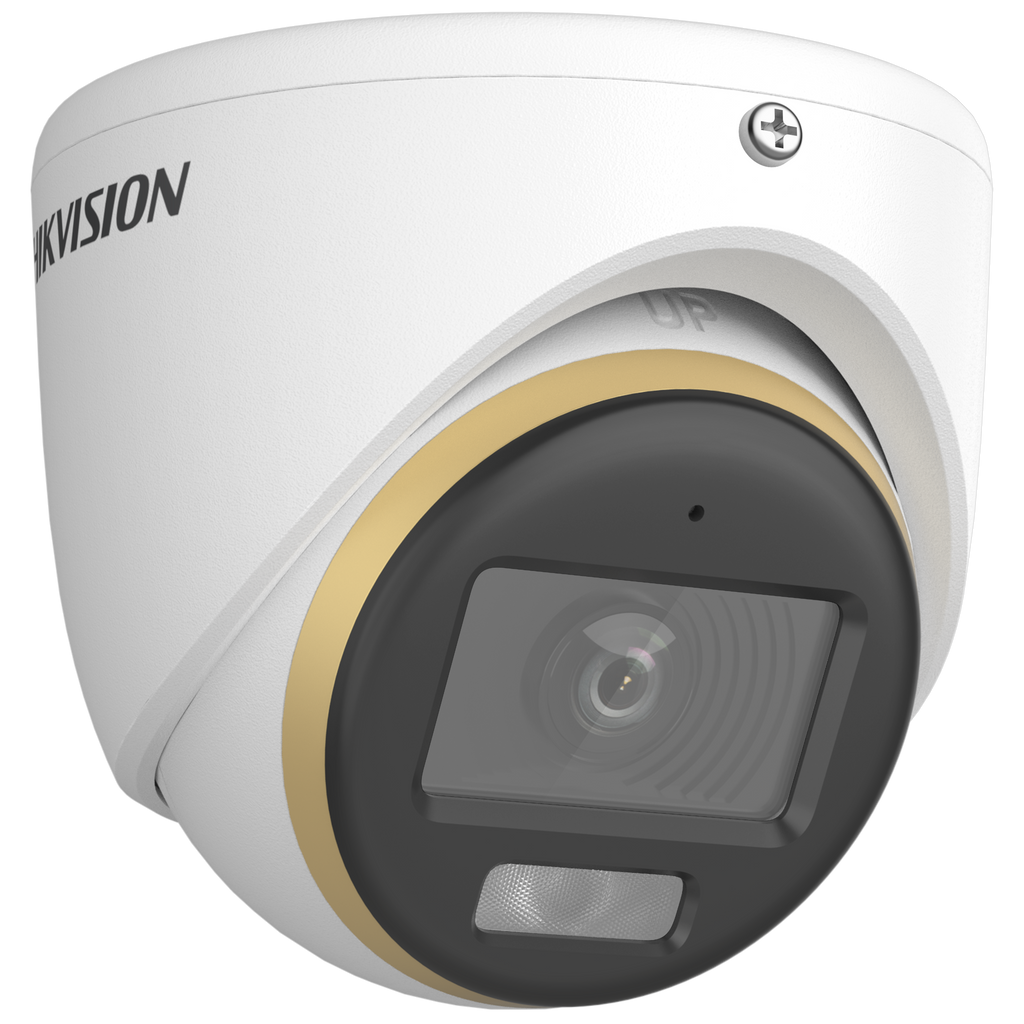

Hikvision 2MP ColorVu Dome – 2.8mm, 20m Hybrid-Light, 130dB WDR, 12VDC

Capture vivid 24/7 color surveillance with the ColorVu 2MP dome camera. Featuring Smart-Hybrid lighting, 130 dB true WDR, and built-in audio, it delivers clear images even in challenging lighting conditions. IP67-rated for reliable outdoor use.

Features

• 2 MP Full HD imaging, 1920 × 1080 resolution

• 24/7 color imaging with F1.0 aperture

• Smart-Hybrid IR/White light up to 20 m

• 130 dB true WDR for clear imaging against strong backlight

• 3D DNR technology for clean, sharp images

• 2.8 mm / 3.6 mm fixed focal lens

• Built-in microphone with audio over coaxial cable

• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)

• Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 2 MP CMOS

• Max. Resolution: 1920 × 1080

• Min. Illumination: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with white light

• Shutter Time: PAL 1/25–1/50,000 s; NTSC 1/30–1/50,000 s

• Day/Night: ICR

• Angle Adjustment: Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°

• Signal System: PAL/NTSC

• Slow Shutter: Max 16×

Lens

• Type: 2.8 mm / 3.6 mm fixed focal lens

• FOV 2.8 mm: H105°, V56°, D123°

• FOV 3.6 mm: H85°, V46°, D98°

• Lens Mount: M12

Microphone

• Pickup Distance: Up to 5 m radius

• Quantity: 1

Illuminator

• Type: Smart IR/White Light

• Range: IR up to 20 m, White Light up to 20 m


• Frame Rate: 1080p @25/30 fps (TVI/AHD/CVI), PAL/NTSC (CVBS)

• Day/Night Mode: Auto/Color

• WDR: ≥130 dB

• Image Enhancement: WDR, BLC, HLC, Global, HLS

• Noise Reduction: 3D DNR

• Privacy Mask: 4 programmable areas

• White Balance: Auto / Manual

• Image Settings: Brightness, Contrast, Sharpness, Anti-banding, AGC

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

• Alarm: Solid Light (White Light)

• Event: 4 programmable motion detection areas

General

• Material: Metal

• Dimensions: Ø85.11 × 77.62 mm (Ø3.35" × 3.05")

• Weight: 335 g (0.74 lb.)

• Operating Conditions: -40 °C to 60 °C, Humidity ≤90% (non-condensing)

• Communication: HIKVISION-C

• Language: English

• Power: 12 VDC ±25%, Max 5.4 W (one adapter per camera recommended)

Approval

• Protection: IP67
