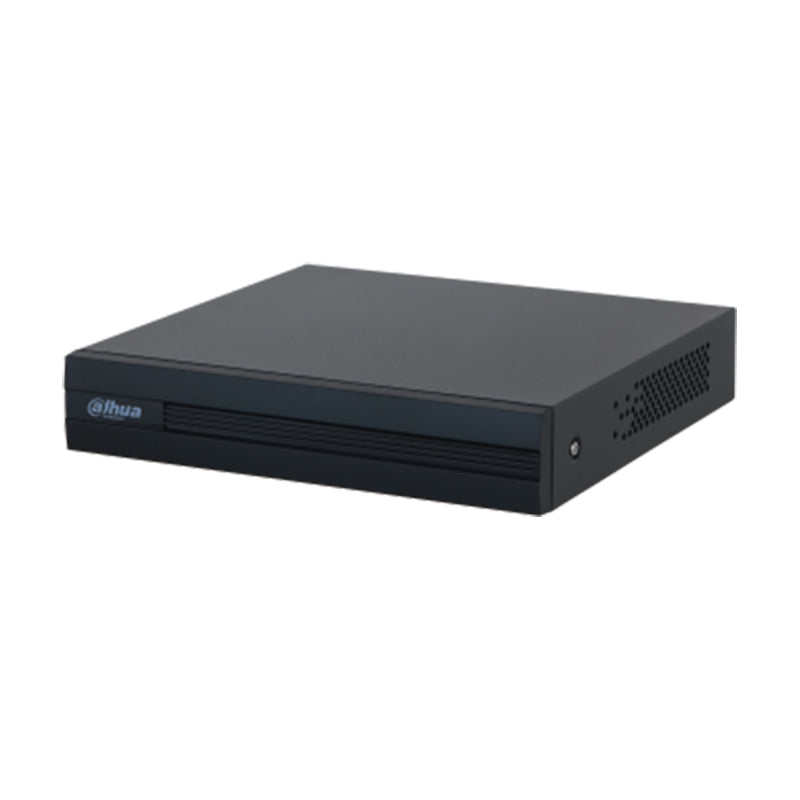

Dahua 8CH 5 IN 1 DVR 720 1 Sata Slot Excl HDD Cooper
- H.265+/H.265 dual-stream video compression
- Supports Full channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 10 channels IP camera inputs, each channel up to 6MP; Max
- 40 Mbps incoming bandwidth
- Up to 4 channels video stream ( analog channel ) SMD Plus
Series Overview
Dahua Technology, a world-leading video-centric smart IoT solution and
service provider, debuted its new XVR series, Cooper Series featuring
SMD Plus to benefit customers from AI upgrade. The series are
designated to reduce false-alarm rates and human surveillance costs,
thus bringing great value to customers in search of products with
accurate human/vehicle alarm to raise the security level of various
indoor and outdoor facilities.
Functions
SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.
AI Coding
Compared with H.265/H.264, AI coding can reduce more than 50%
bit rate and storage requirements while have no loss of decoding
compatibility, providing clear human and vehicle details.
Smart Codec
With advanced scene-adaptive rate control algorithm, Dahua smart
codec technology realizes the higher encoding efficiency than H.265 and
H.264, provides high-quality video, and reduces the cost of storage and
transmission.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any
setting. It makes operation more friendly and convenient.
High Definition Camera Input
The XVR supports up to 2MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much
more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable
and UTP, max. 800 m for 1080p and 1200 m for 720p.
Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
| DH-XVR1B08-I
www.dahuasecurity.com
Technical Specification
System
Main Processor Embedded processor
Operating System Embedded linux
SMD Plus
Performance 4 channels
AI Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 8 channels, BNC
HDCVI Camera Input 1080p@ 25/30 fps, 720p@25/30 fps
AHD Camera Input 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input 1080p@25/30 fps, 720p@25/30 fps
CVBS Camera Input PAL/NTSC
IP Camera Input 8+2 channels, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 1080N; 720p; 960H; D1; CIF
Record Rate
Main Stream:
8-channel: the 1st channel 1080N/720p(1 fps–25/30
fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1
fps–25/30 fps)
Sub stream:
8-channel: CIF (1 fps–7 fps)
Bit Rate 32 kbps–4096 kbps per channel
Record Mode
Manual; Schedule (General, Continuous); MD (Video
detection: Motion Detection, Video Loss, Tampering);
Alarm; Stop
Record Interval 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s,
Post-record: 10 s–300 s
Audio Compression G.711A; G.711U; PCM
Audio Sample Rate 8 KHz, 16 bit per channel
Audio Bit Rate 64 kbps per channel
Display
Interface 1 HDMI; 1 VGA
Resolution 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
OSD Camera title; Time; Video loss; Camera lock; Motion
detection; Recording
Network
Interface 1 RJ-45 Port (100 Mbps)
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP;
UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter;
PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search
(Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
| DH-XVR1B08-I
Smart Phone iPhone; iPad; Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 1/4/9
Search Mode Time/Date; Alarm; MD and Exact Search (accurate to
second)
Playback Function
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next
File; Previous File; Next Camera; Previous Camera; Full
Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA port, up to 6 TB capacity
eSATA N/A
Auxiliary Interface
USB 2 USB ports (USB 2.0)
RS485 N/A
RS232 N/A
Electrical
Power Supply DC 12 V/1.5 A
Power Consumption
(Without HDD) < 7 W
Construction
Dimensions Cooper 1U, 198 mm × 202.9 mm × 41.5 mm
(7.81'' × 7.99'' × 1.63'')
Net Weight
(without HDD) 0.62 kg (1.37 lb)
Gross Weight 1.13 kg (2.49 lb)
Installation Desktop installation
Environmental
Operating Conditions –10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH)
Storage Conditions –20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH)
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN
50130; EN 55024
