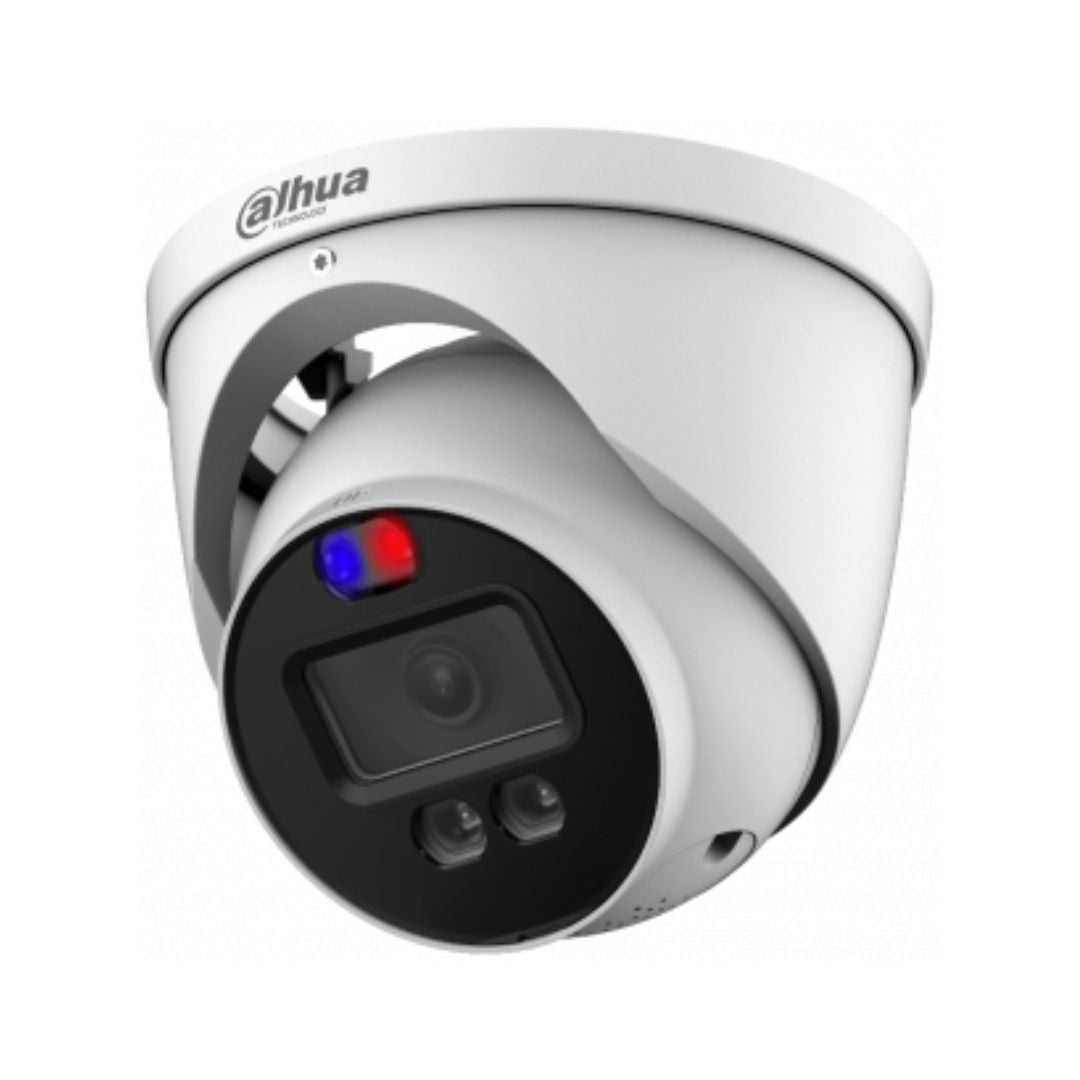

Dahua Dome Active Deterrence 5MP 3.6MM Lens 40M IR Smart IR Full Colour

· Max 25 fps@5 MP (16:9 video output).
· 120 dB true WDR, 3D NR.
· Smart Dual Illuminators.
· Protection Against Red-Blue Light Interference.
· Active deterrence with red blue light, siren and alarm out interface.
· 40 m illumination distance.
· Super Adapt.
· Built-in MIC.
· 3.6 mm fixed lens (2.8 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP67, 12 VDC.

Smart Dual Illuminators
With its smart dual illumination mechanism, the camera automatically
turns on the white light when Perimeter Protection/SMD Plus function
of AI XVR detects a target in therule area to capture clear, vivid images.
When the target leaves the rule area, the camera automatically switches
over from the white light to the IR illuminator to significantly reduce light
pollution.
Protection Against Red-Blue Light Interference
Leveraging smart exposure technology, the camera uses the CMOS
image sensor to exercise time-sharing control over image capture and
the red and blue lights to eliminate interference by switching off the
lights when pictures are being taken.
Active Deterrence(Red-blue Light)
Designed with active deterrence technology, the camera turns on a
siren and a red-blue light that flashes in intervals to deter and warn off
intruders. The siren has customizable settings.
Wide Dynamic Range
With its advanced Wide Dynamic Range technology (WDR), the camera
captures highly detailed images and produces high-definition recordings
in high-contrast lighting conditions, and in scenes with backlighting or
shadows.
* The parameters and datasheets below can only be applied to ME1509-S2 serie.Intelligent Voice Alarm
 function which can be used with Scheduled AI of AI XVR is only available for TiOC 2.0 camera.
* In order to use the 5 MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to
 V4.001.0000001.0.R.200908 or later version.
· Max 25 fps@5 MP (16:9 video output).
· 120 dB true WDR, 3D NR.
· Smart Dual Illuminators.
· Protection Against Red-Blue Light Interference.
· Active deterrence with red blue light, siren and alarm out interface.
· 40 m illumination distance.
· Super Adapt.
· Built-in MIC.
· 3.6 mm fixed lens (2.8 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP67, 12 VDC.
DH-HAC-ME1509H-A-PV
5MP Smart Dual Illuminators Active Deterrence HDCVI Eyeball Camera
The Active Deterrence Series offers a multi-dimensional system that
links surveillance videos to alarms, audio prompts and various types of
information to assist with verifying potential risks. Cameras in this series
actively warn off intruders with light and sound, while keeping you up to
date of events in real-time through alarm-over-coax and its live view.
System Overview
Functions
IP67
Active Deterrence Series | DH-HAC-ME1509H-A-PV
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the
HDCVI camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests.
Its enclosure is both dust-proof and waterproof, and can function
normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some
power supplies) and a wide voltage range, making it suitable for a variety
of outdoor scenarios

Technical Specification

Camera Pixel 5MP
Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s
Min. Illumination
0.001 lux@F1.0 (Color, 30 IRE)
0.0001 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65dB
Illumination Distance IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number
2 (IR light)
2 (Warm light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 111°; V: 57°; D: 131°
3.6 mm: H: 89°; V: 47°; D: 104°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 66.0 m
(216.54 ft)
26.4 m
(86.61 ft)
13.2 m
(43.31 ft)
6.6 m
(21.65 ft)
3.6 mm 78.0 m
(255.91 ft)
31.2 m
(102.36 ft)
15.6 m
(51.18 ft)
7.8 m
(25.59 f
