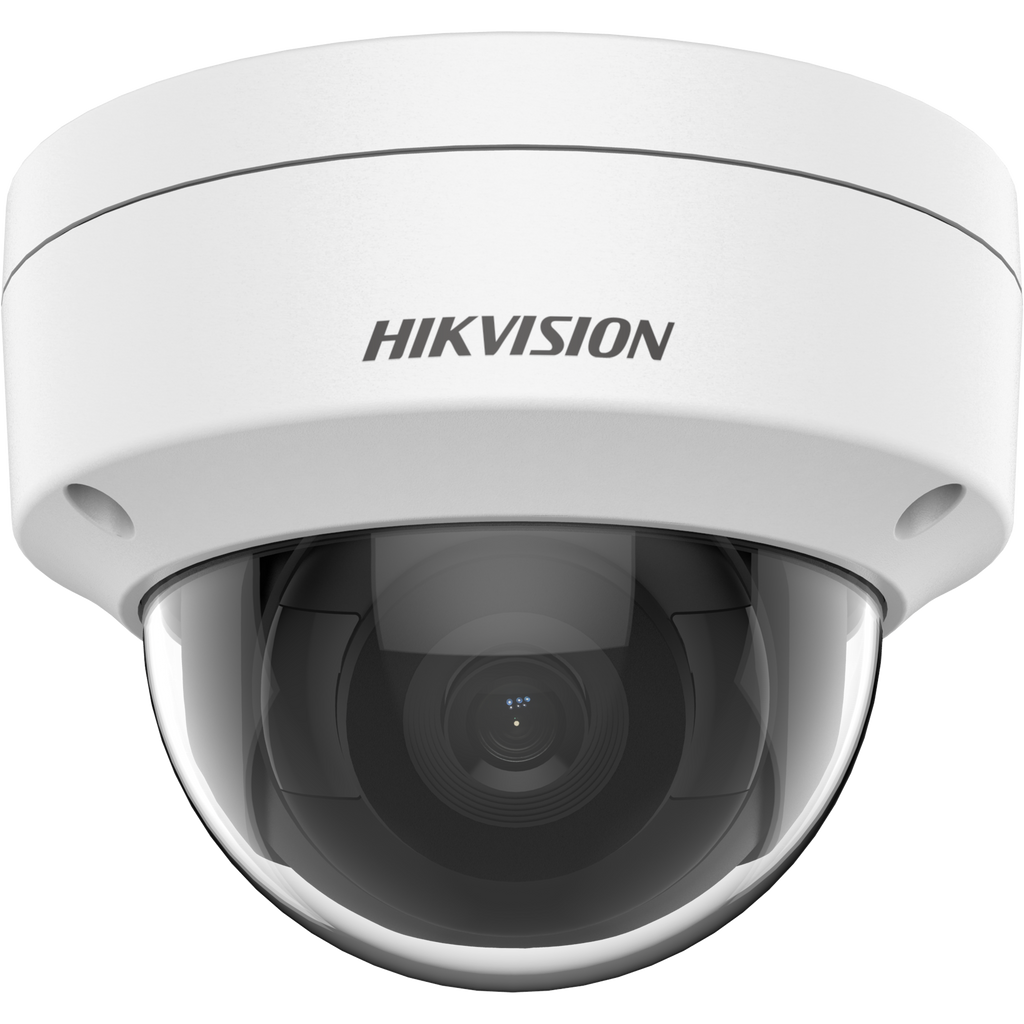

Eco 2MP Dome – 2.8mm Lens, 30m IR, DWDR, 12VDC/PoE

A reliable 2MP dome camera with digital WDR and advanced EXIR 2.0 infrared technology, designed for clear imaging in challenging lighting conditions. IP67-rated and IK10 vandal resistant.

Features

• High-quality 2 MP resolution imaging

• EXIR 2.0 infrared technology for long-range night vision (up to 30 m)

• Digital WDR for clear imaging in high contrast scenes

• Efficient H.265+ compression

• Water and dust resistant (IP67)

• Vandal-resistant (IK10)

Specifications

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Max Resolution: 1920 × 1080

• Min Illumination: 0.01 Lux @ F2.0 (Color), 0 Lux with IR

• Shutter: 1/3 s to 1/100,000 s

• Day/Night: IR cut filter

• Angle Adjustment: Pan 0°–355°, Tilt 0°–75°

Lens

• Type: Fixed focal lens, 2.8 mm or 4 mm optional

• 2.8 mm FOV: 112.1° H, 60.0° V, 132.2° D

• 4 mm FOV: 90.2° H, 48.6° V, 107.6° D

• Mount: M12

• Aperture: F2.0

Illuminator

• Type: IR

• Range: Up to 30 m

• IR Wavelength: 850 nm

Video

• Main Stream: 25–30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream: 25–30 fps (640 × 480, 640 × 360)

• Compression: H.265+, H.265, H.264+, H.264

• Bitrate: 32 Kbps to 8 Mbps

• ROI: 1 fixed region for main stream

Network

• Protocols: TCP/IP, HTTP/HTTPS, RTSP, FTP, DHCP, DNS, IPv4/IPv6, SNMP, UPnP, and more

• Simultaneous live view: up to 6 channels

• Users: up to 32 (Admin, Operator, User)

• Client Software: iVMS-4200, Hik-Connect

• Web Browser: Chrome, Firefox, Edge (plug-in free), IE 10+ (plug-in required)


• WDR: Digital WDR

• Image Enhancement: BLC, 3D DNR

• S/N Ratio: ≥ 52 dB

• Day/Night Modes: Day, Night, Auto, Schedule

• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable via software

Interface & Events

• Ethernet: 1 × RJ45 (10/100 Mbps)

• Basic Event: Motion detection, video tampering alarm, exception

• Linkage: FTP upload, notify surveillance center, email

• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

General

• Power: 12 VDC ±25%, 0.4 A, max 5 W; PoE 802.3af, Class 3, max 6.5 W

• Material: Metal & Plastic

• Dimensions: Ø110 × 82.4 mm

• Weight: 410 g (0.9 lb), With package: 610 g (1.3 lb)

• Operating Temperature: –30 °C to 60 °C

• Protection: IP67, IK10

Approval

• EMC: FCC, CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS

• Environment: CE-RoHS, WEEE, REACH
