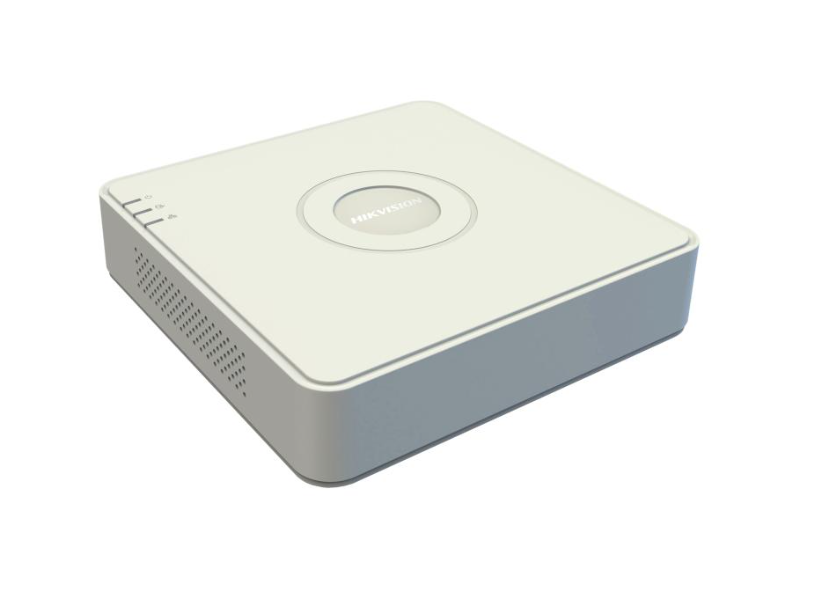

Eco 4-Channel POE NVR – 1 SATA, 6TB, Up to 4MP Recording, 4 POE Ports

Features

• H.265+/H.265/H.264+/H.264 video compression

• Up to 40 Mbps incoming bandwidth, 60 Mbps outgoing bandwidth

• Up to 4 network camera inputs

• 4-channel 1080p decoding capability

• HDMI and VGA simultaneous output

• 4 × POE ports (RJ-45 10/100 Mbps, IEEE 802.3af/at, ≤ 36 W total)

Specifications

Video & Audio

• IP Video Input: 4 channels, up to 6 MP resolution

• Incoming Bandwidth: 40 Mbps

• Outgoing Bandwidth: 60 Mbps

• HDMI Output: 1 × 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz

• VGA Output: 1 × 1920×1080p/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz

• Video Output Mode: HDMI & VGA simultaneous

• Decoding Format: H.265+/H.265/H.264+/H.264

• Recording Resolution: 6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback: 4 channels

• Decoding Capability: 4-ch @1080p (30 fps), 2-ch @4 MP (30 fps), 1-ch @6 MP (30 fps)

• Stream Type: Video, Video & Audio

Network

• Remote Connections: Up to 16

• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™

• Network Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet

• PoE Interface: 4 × RJ-45 10/100 Mbps self-adaptive Ethernet

• PoE Standard: IEEE 802.3 af/at

• PoE Power: ≤ 36 W

Auxiliary Interface

• SATA: 1 interface, supports up to 6 TB per disk

• USB: 2 × USB 2.0 (rear panel)

• Alarm In/Out: N/A

General

• Power Supply: 48 VDC, 1 A

• Power Consumption: ≤ 10 W

• Operating Temperature: -10°C to +55°C (14°F to 131°F)

• Operating Humidity: 10% to 90%

• Dimensions (W×D×H): 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")

• Weight: ≤ 1 kg (2.2 lb)

Certification

• CE, EN50130-4, EN61000-3-2, EN61000-3-3
