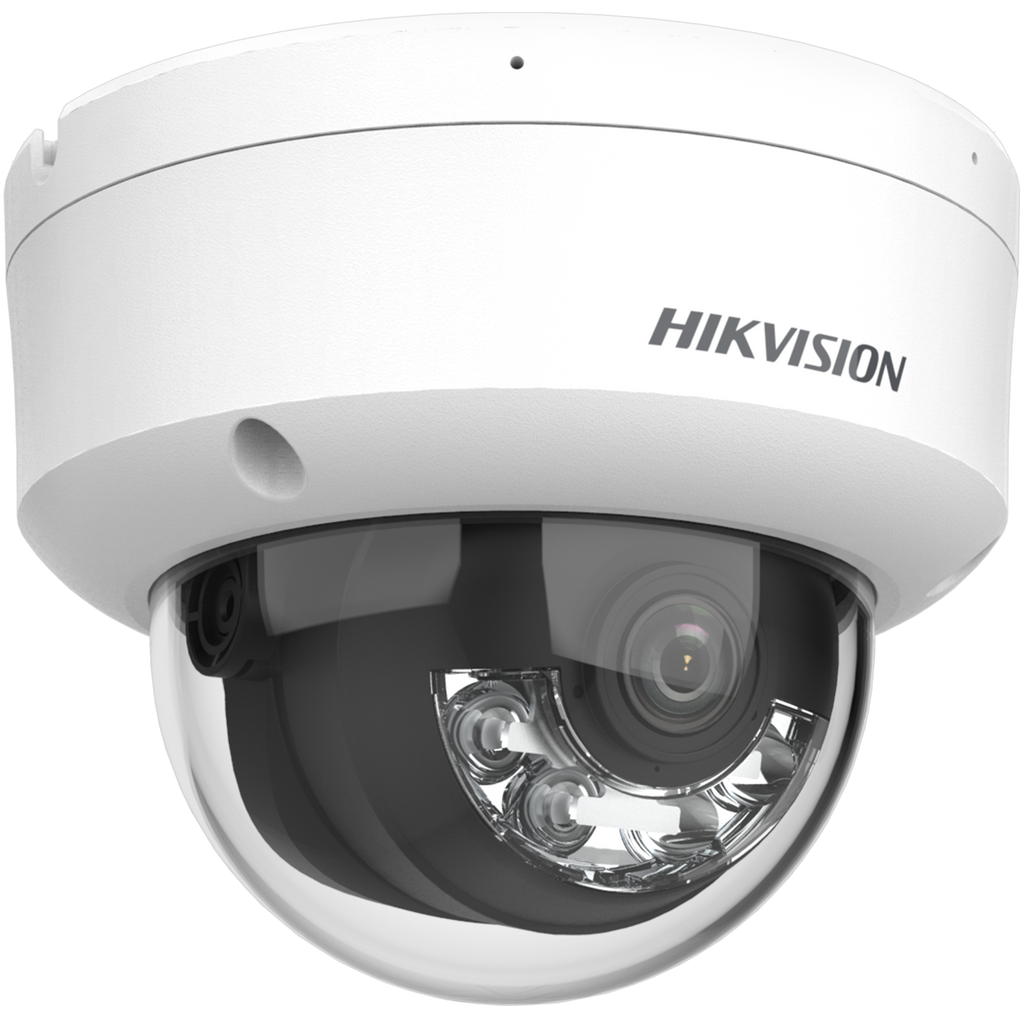

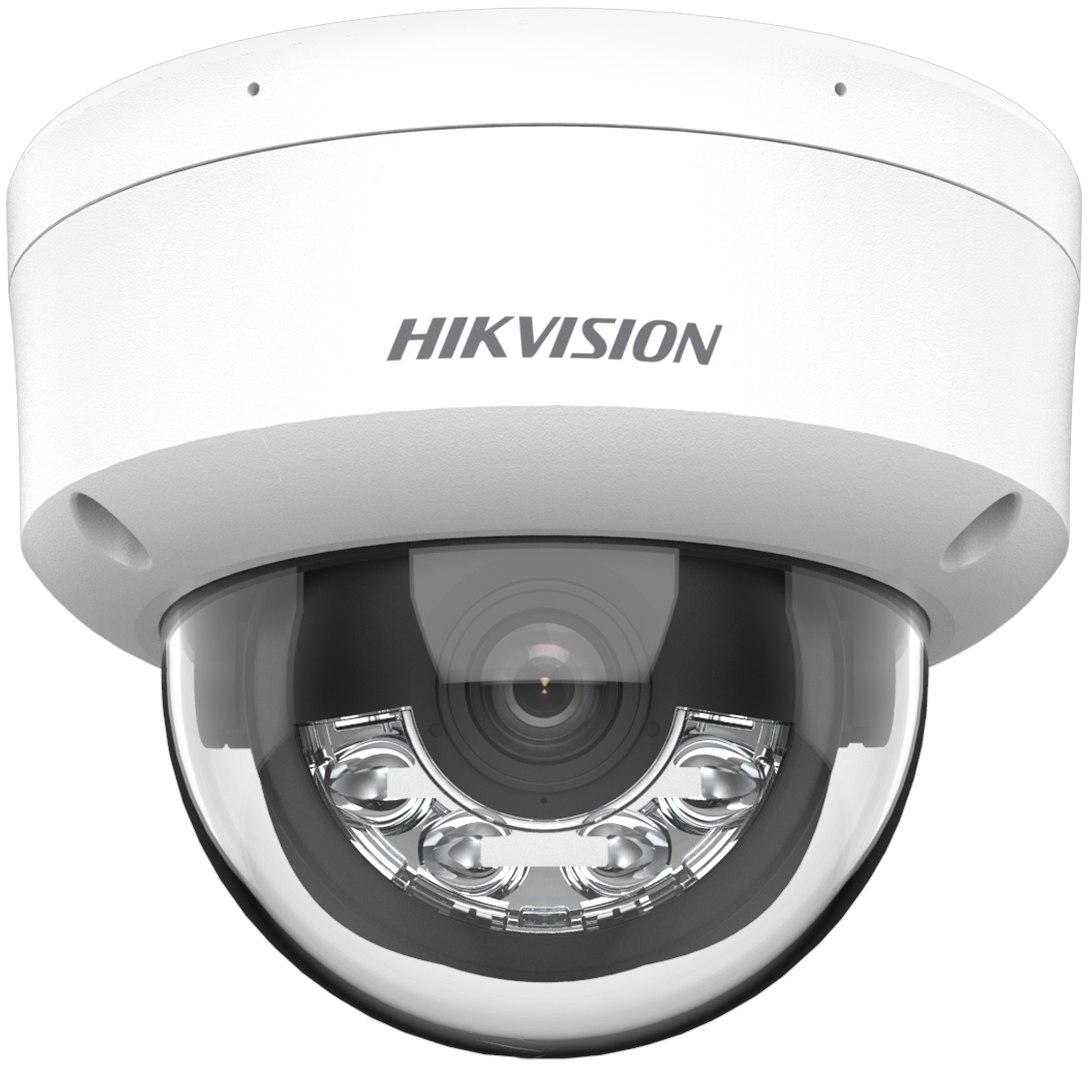

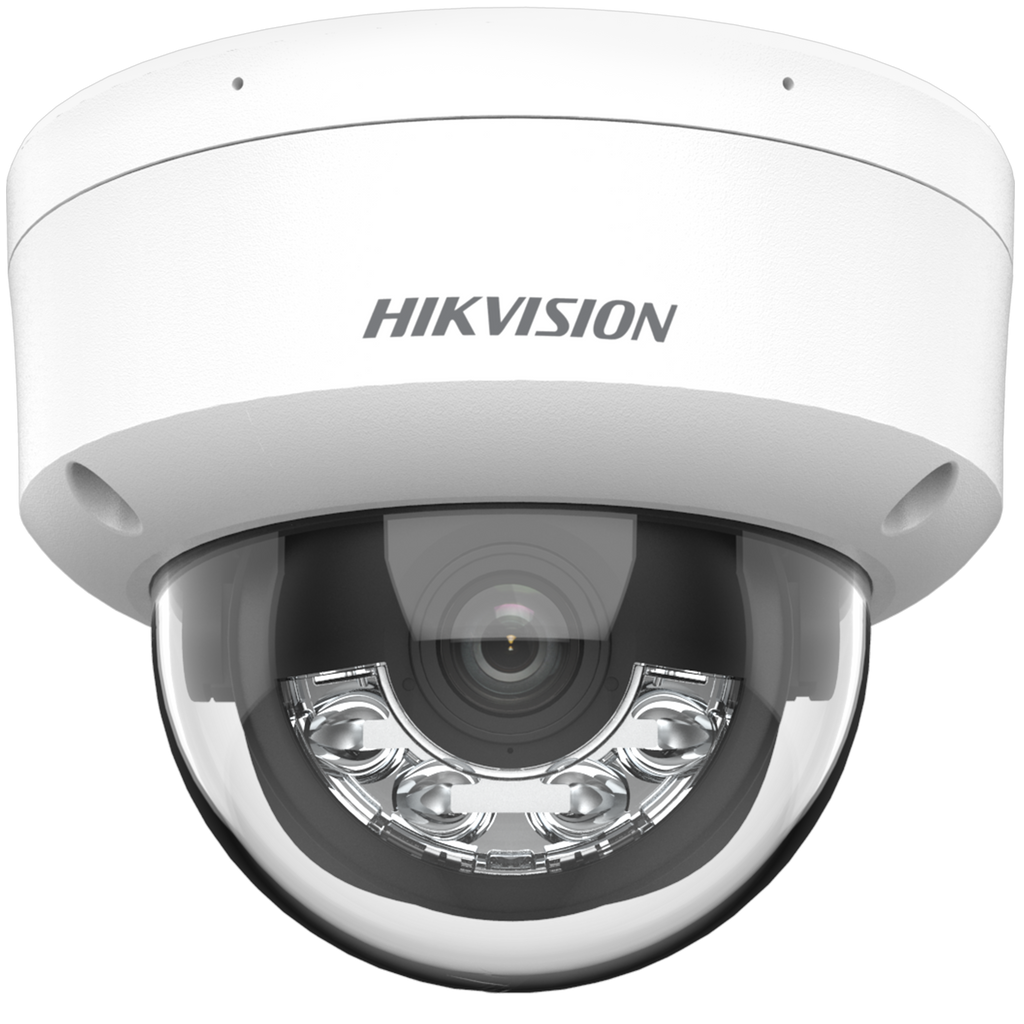

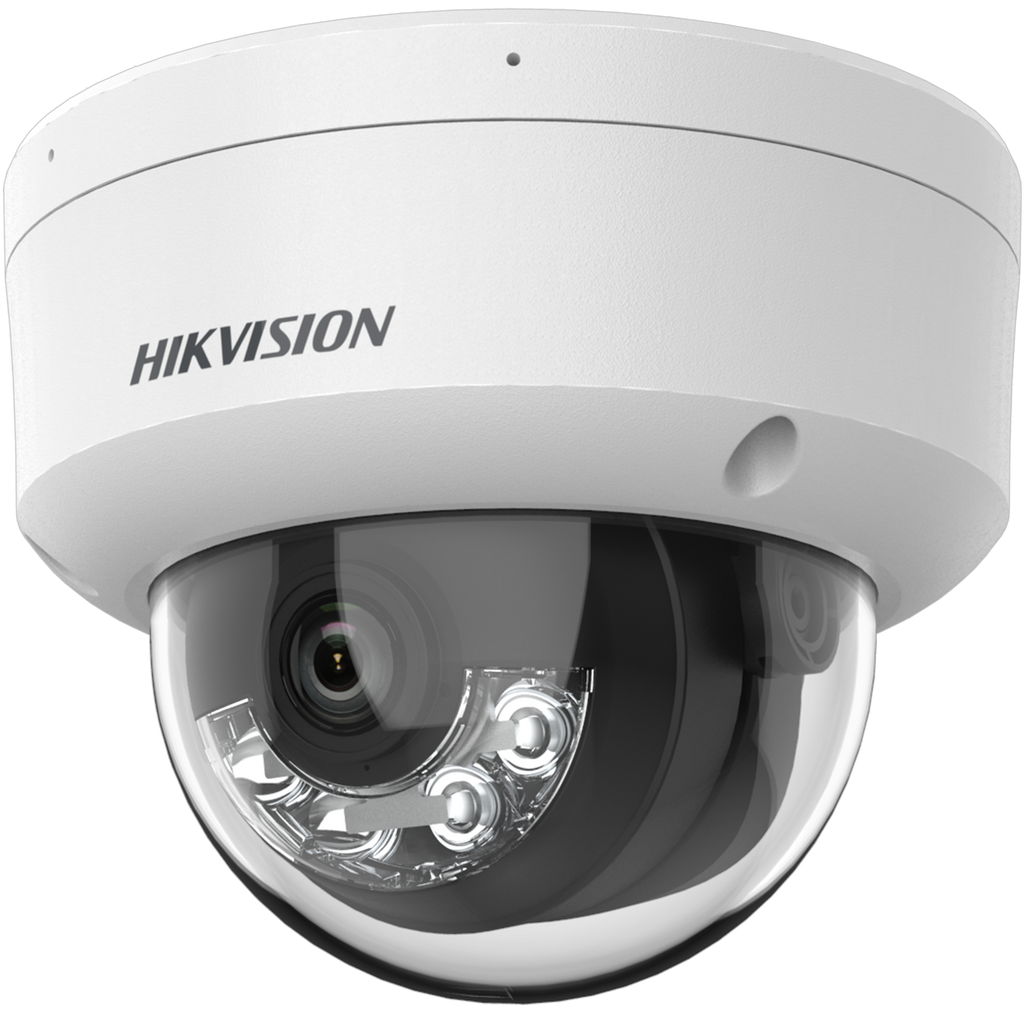

Eco 4MP Dome Camera – 2.8 mm Lens, 30 m Hybrid IR/White Light, Microphone, 12 VDC/PoE

Compact 4MP hybrid-light dome camera with strong low-light performance, built-in microphone, durable IP67/IK08 protection, and efficient H.265+ compression.

Features

• 4MP high-quality imaging
• Smart Hybrid Light technology with up to 30 m range
• Built-in microphone for real-time audio monitoring
• IP67 water-resistance and IK08 vandal-resistance
• Efficient H.265+ compression for reduced bandwidth and storage

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Max Resolution: 2560 × 1440

• Min Illumination: 0.005 Lux (Color, F1.6), 0 Lux with IR

• Shutter: 1/3 s – 1/100,000 s

• Day/Night: IR-cut filter

• Angle Adjustment: Pan 0–355°, Tilt 0–75°, Rotate 0–355°

Lens

• Type: Fixed (2.8 mm or 4 mm optional)

• FOV:

  • 2.8 mm – H: 98°, V: 54°, D: 114°

  • 4 mm – H: 78°, V: 42°, D: 93°

• Aperture: F1.6

• Mount: M12

DORI

• 2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m

• 4 mm: D 78 m, O 31 m, R 15 m, I 7 m

Illumination

• Hybrid IR & White Light

• Range: Up to 30 m

• IR Wavelength: 850 nm

• Smart Supplement Light: Yes

Video

• Main Stream: up to 20 fps (2560 × 1440), 25/24 fps (1080p/720p)

• Sub-Stream: up to 25/24 fps

• Compression: H.265+/H.265/H.264+/H.264, MJPEG

• Bitrate: 32 Kbps – 8 Mbps

• ROI: 1 fixed region

Audio

• Built-in Microphone

• Mono Sound

• Noise Filtering Supported

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

Network

• Protocols: TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, NTP, FTP, SMTP, IGMP, IPv6, QoS

• Security: Password protection, authentication, watermark, audit log

• Users: Up to 32 (admin/operator/user)

• Clients: iVMS-4200, Hik-Connect

• API: ISAPI, SDK, ONVIF (Profile S/T)


• WDR: 120 dB

• SNR: ≥52 dB

• Enhancements: BLC, HLC, 3D DNR

• Day/Night Switch: Auto, Day, Night, Schedule

• Privacy Masking: 4 programmable zones

Interface

• Ethernet: 1 × RJ45 (10/100 Mbps)

• Audio: Built-in mic

Events

• Motion detection (human & vehicle filtering)

• Video tampering

• Exception alarms

• Linkage: Notify center, email, capture

General

• Power: 12 VDC ±25% (max 6 W) or PoE (802.3af, Class 3, max 7.5 W)

• Material: Metal & Plastic

• Dimensions: Ø121.4 × 97.7 mm

• Weight: Approx. 550 g (800 g with packaging)

• Operating Temp: –30 °C to 60 °C

• Protection: IP67, IK08

• Functions: Heartbeat, anti-banding, mirror, password protection, email reset

Approvals

• EMC: FCC, CE-EMC, RCM, IC

• Safety: UL, CB, CE-LVD, BIS, LOA

• Environmental: CE-RoHS, WEEE, REACH
