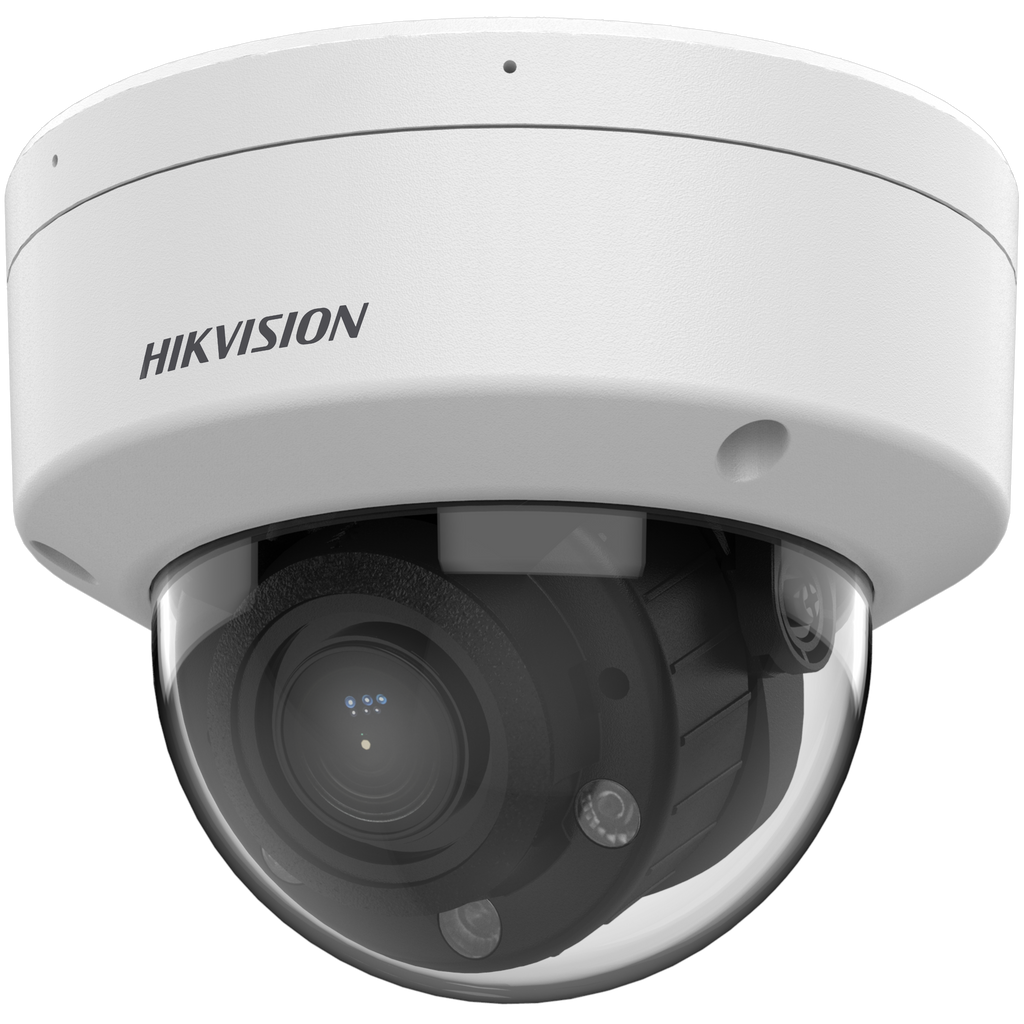

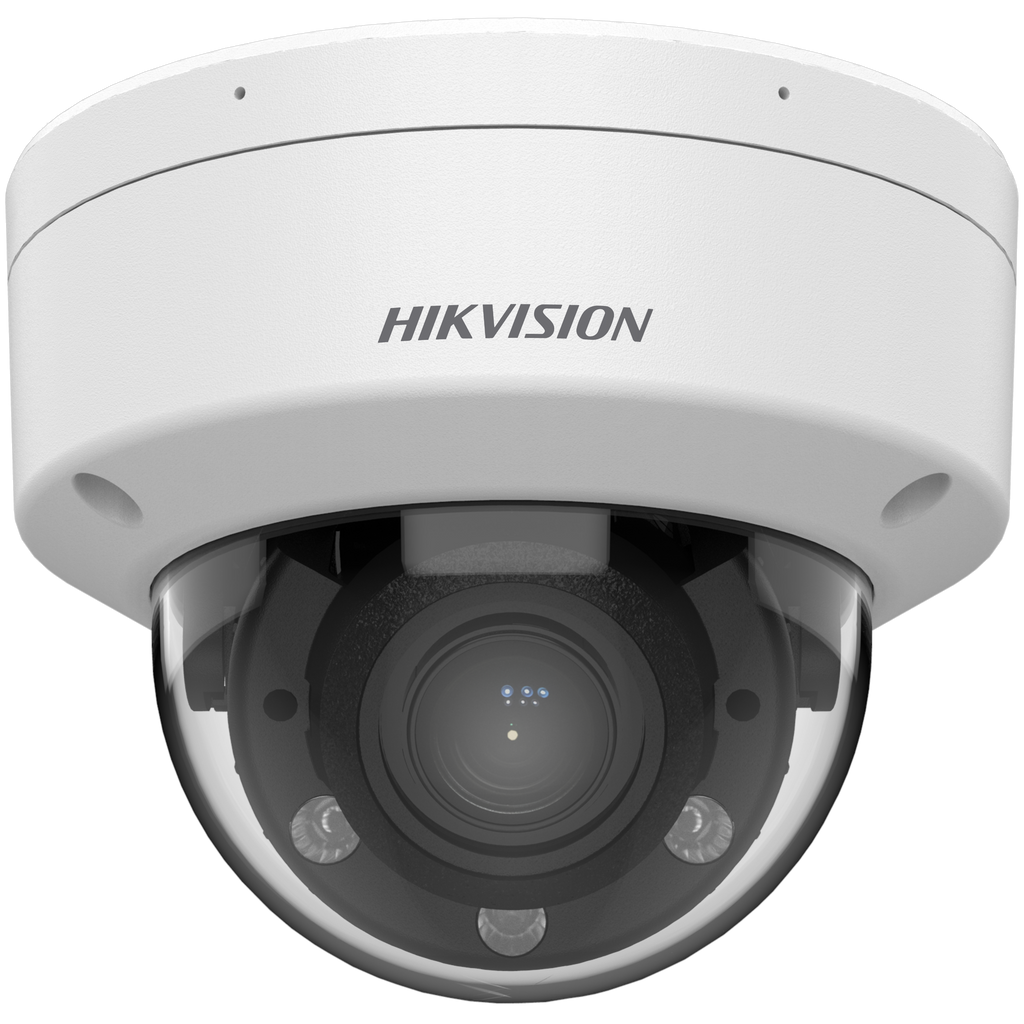

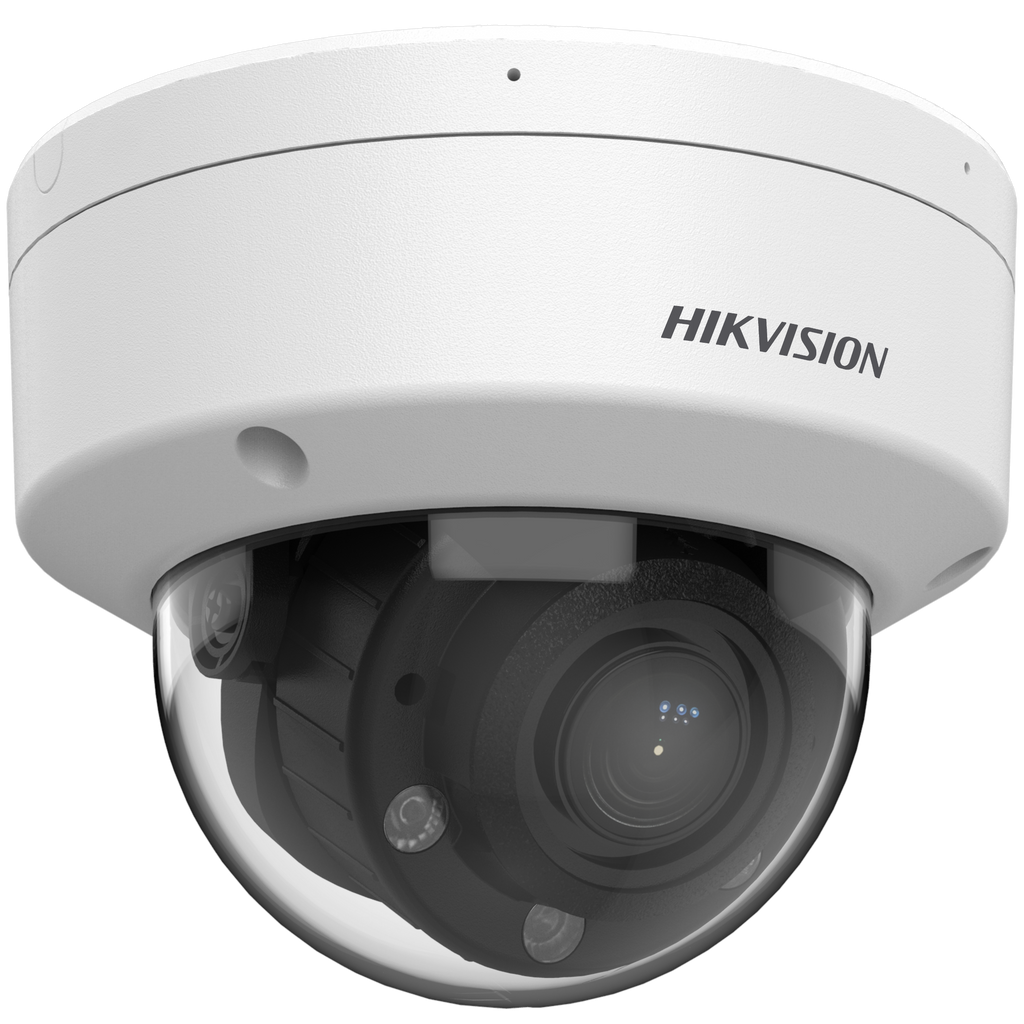

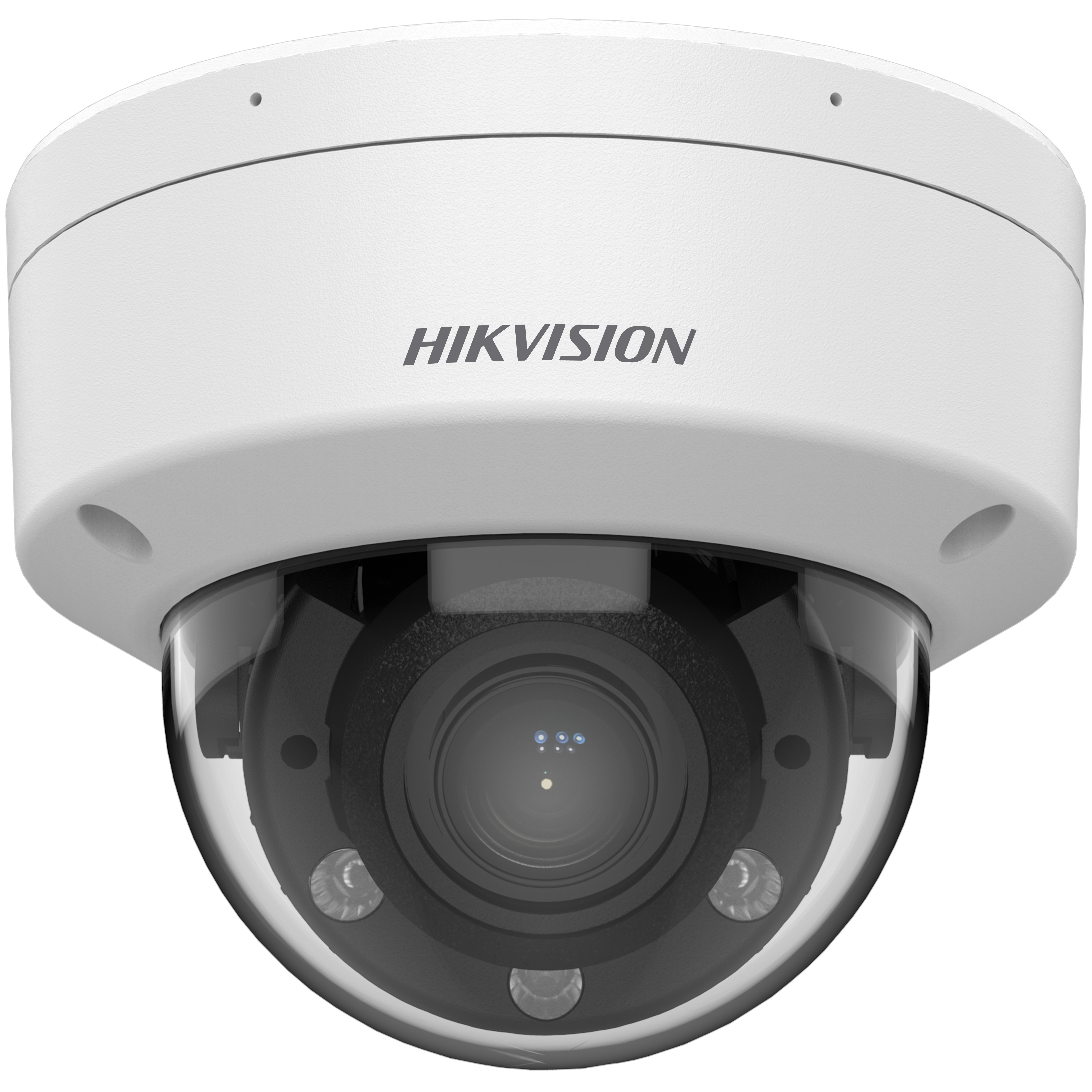

Eco 4MP Varifocal Dome Camera (2.8–12 mm, 50 m IR, Built-In Microphone, 12VDC/PoE)

Features

• High-quality imaging with 4MP resolution

• Human & Vehicle Detection for smarter alerts

• Smart Hybrid Light technology with long-range illumination

• Clear images in challenging lighting with 120 dB True WDR

• Supports on-board storage up to 512 GB (microSD slot)

• Efficient H.265+ compression for reduced bandwidth and storage

• Built-in microphone for real-time audio

• 2.8–12 mm motorized varifocal lens for flexible installation

• IP67 weatherproof and IK08 vandal-resistant housing

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 2560 × 1440 (4MP)
• Min Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day/Night: IR cut filter
• Angle Adjustment: Pan 0°–355°, Tilt 0°–70°, Rotate 0°–355°

Lens

• Type: Motorized varifocal
• Focal Length: 2.8–12 mm
• FOV: Horizontal 96.7°–29.7°, Vertical 51.7°–16.7°, Diagonal 114.3°–34°
• Aperture: F1.6

DORI

• Detect: 64–198 m
• Observe: 25.4–78.6 m
• Recognize: 12.8–39.6 m
• Identify: 6.4–19.8 m

Illuminator

• Type: IR & White Light
• Range: Up to 30 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Frame Rates (Main Stream):
  • 50Hz: 20 fps @ 2560×1440; 25 fps @ 1080p/720p
  • 60Hz: 20 fps @ 2560×1440; 24 fps @ 1080p/720p
• Compression: H.265+/H.265/H.264+/H.264, MJPEG
• Bitrate: 32 Kbps–16 Mbps
• WDR: 120 dB
• ROI: 1 region

Audio

• Type: Mono
• Compression: G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Sampling: 8 kHz / 16 kHz
• Built-In Microphone: Yes
• Noise Filtering: Enabled

Network

• Protocols: TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, NTP, IGMP, IPv6, FTP, SMTP
• Users: Up to 32
• Browser Support: IE10/11 (plugin), Chrome/Firefox/Edge (local service)
• Compatible Software: iVMS-4200, Hik-Connect

Image Functions

• Adjustable settings: rotate, saturation, brightness, contrast, sharpness, gain, white balance
• Enhancements: BLC, HLC, 3D DNR
• Privacy Masking: Up to 4 areas

Interface

• Network Port: RJ45 (10/100M)
• Storage: Supports microSD up to 512 GB
• Audio I/O (-S models): 1 input, 1 output
• Alarm I/O (-S models): 1 input, 1 output
• Reset Button: Yes

Power & Installation

• Power: 12 VDC ±25% or PoE (802.3af Class 3)
• Power Consumption: Max 12 W (PoE)
• Material: Metal base, plastic cover
• Dimensions: Ø121.5 × 97.6 mm
• Weight: Approx. 540 g (740 g with packaging)

Environmental

• Operating Temperature: –30°C to 60°C
• Humidity: Up to 95% (non-condensing)
• Protection: IP67 waterproof, IK08 vandal-resistant

Certifications

• EMC: CE, RCM, IC
• Safety: UL, CB, CE-LVD, BIS, LOA
• Environment: RoHS, WEEE, REACH
