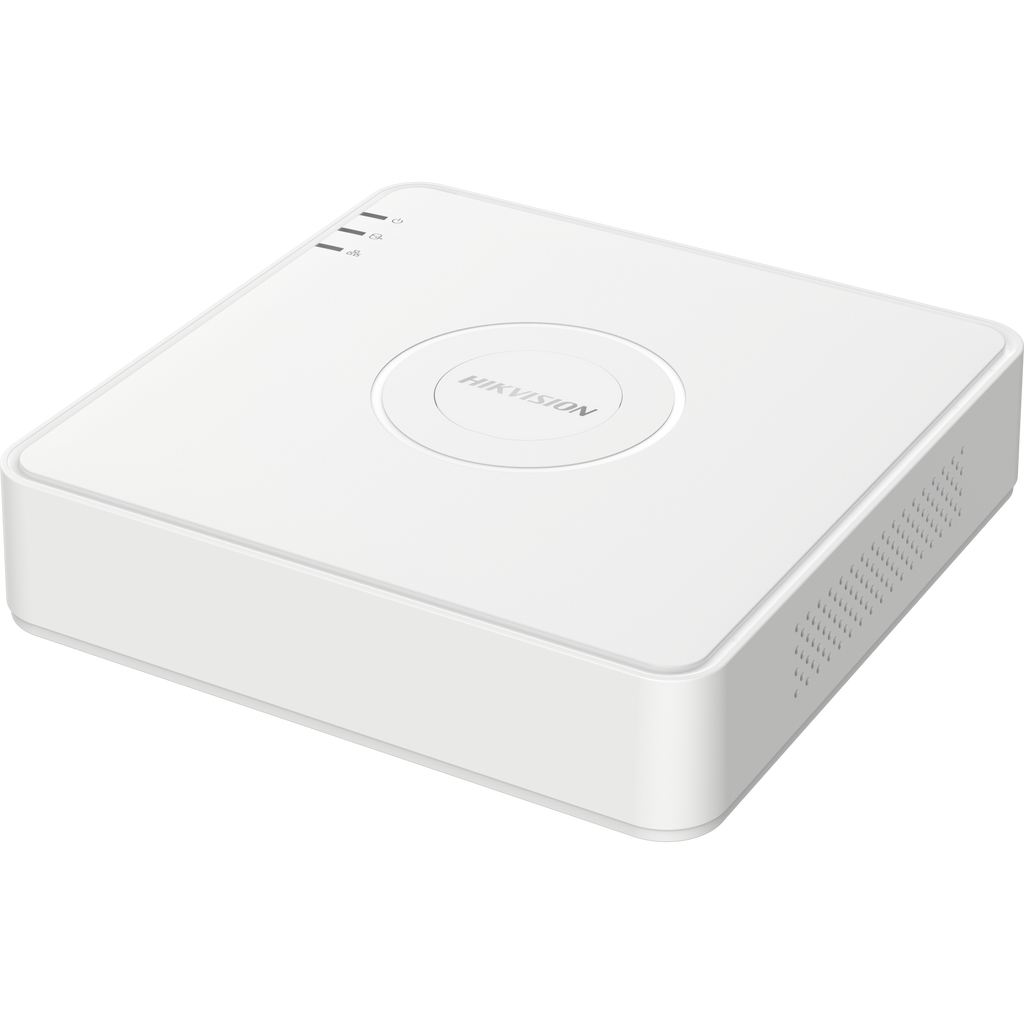

Hikvision Eco AcuSense 8CH 720p DVR – 1 SATA, 10TB, Motion 2.0 False Alarm Filtering

Reliable DVR with advanced human/vehicle detection, H.265 video compression, and flexible video/audio support. Perfect for small to medium surveillance setups with reduced false alarms and easy playback.

Features

• Motion Detection 2.0 with deep learning-based human/vehicle classification

• H.265 Pro+/H.265 Pro/H.265 video compression

• Supports 8 analog channels & up to 10 IP cameras (up to 5 MP)

• HDTVI/AHD/CVI/CVBS input with max 1080p lite @15 fps

• Audio via coaxial cable and 1 RCA input/output

• Max 1200 m for 720p HDTVI signal

• Quick search by object or event type

Specifications

Video & Audio

• IP Video Input: 2-ch default (up to 10-ch), up to 5 MP

• Analog Video Input: 8-ch BNC, supports coaxitron

• Video Output: 1 HDMI + 1 VGA, simultaneous

• Audio: 1-ch RCA, 8-ch via coax, two-way audio supported

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Frame Rate: Main stream up to 1080p Lite @15 fps; Sub-stream CIF/QVGA @15 fps

• Audio Compression: G.711u, 64 Kbps

Network

• Bandwidth: 72 Mbps, Remote connections: 64

• Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DDNS, SMTP, HTTPS

• Interface: 1 × RJ45 10/100 Mbps Ethernet

Storage

• 1 × SATA (up to 4 TB per disk)

• USB: 2 × USB 2.0 (rear panel)

General

• Power: 12 VDC, 1.5 A, ≤17 W (without HDD)

• Operating Temp: -10 °C to 55 °C

• Operating Humidity: 10%–90%

• Dimensions: 200 × 200 × 48 mm

• Weight: ≤1 kg (without HDD)
