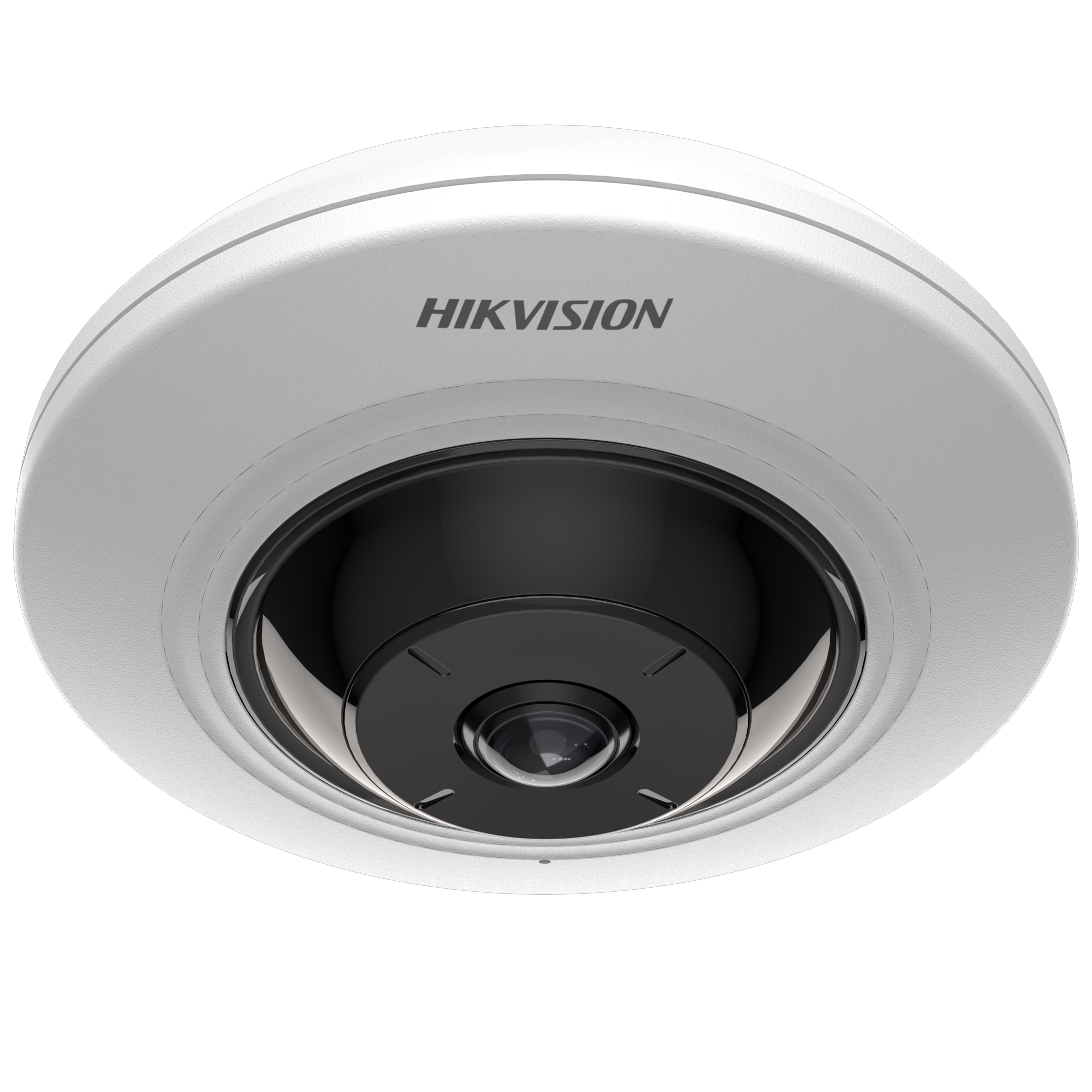

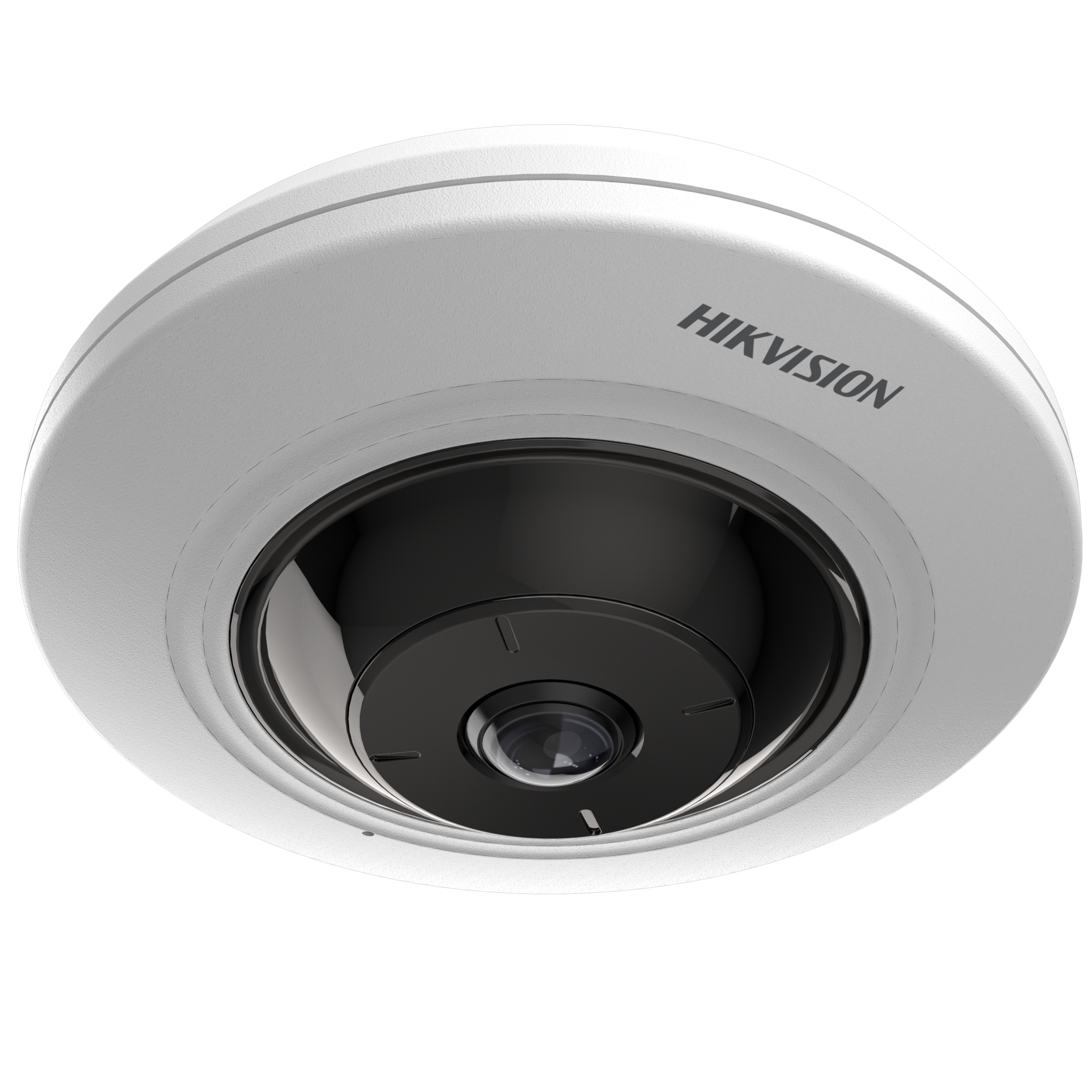

Hikvision 5MP AcuSense Fisheye Camera – 1.05mm Lens, 180° View, 120dB WDR, 12VDC/PoE

The Hikvision 5MP AcuSense Fisheye Camera provides full 180° panoramic coverage, high-resolution imaging, advanced smart features, and supports HEOP and deep learning analytics. Built-in microSD support allows local storage, while H.265+ compression ensures efficient video recording.

Features

• Supports Hikvision Embedded Open Platform (HEOP) and third-party applications

• 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, 2 GB eMMC storage

• Efficient H.265+ video compression

• 180° fisheye view with up to 4 live display modes

• High-quality 5 MP imaging

• Clear imaging in strong backlight with 120 dB True WDR

• Motion detection and video tampering alerts

• Heat map and deep learning analytics support

• Built-in microSD card slot up to 512 GB

Specifications

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Max Resolution: 2560 × 1920

• Min Illumination: 0.017 Lux (Color), 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day/Night: IR cut filter

Lens

• Type: Fixed 1.05 mm

• FOV: H/V/D 180°

• Iris: Fixed, Aperture F2.25

• Depth of Field: 0.1 m – ∞

DORI

• D: 21 m, O: 8 m, R: 4 m, I: 2 m

Illuminator

• Type: IR

• Range: Up to 8 m

• Wavelength: 850 nm

Video

• Main/Secondary Streams: H.265/H.264/H.264+/H.265+

• Bit Rate: 32 Kbps – 16 Mbps

• ROI: 5 fixed regions

Audio & Alarm

• 1 input / 1 output, built-in microphone

• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Network & Security

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, ONVIF Profile S/G/T

• Users: Up to 32, 3 levels (Admin, Operator, User)

• Security: Password, HTTPS, IP filter, Security Audit Log, TLS 1.2

Storage

• Built-in microSD slot up to 512 GB

• NAS support with ANR

General

• Power: 12 VDC ±25%, 0.50 A, max 6 W / PoE: max 7.5 W

• Material: Metal

• Dimensions: Ø119.9 × 41.2 mm

• Weight: 320 g / with package 510 g

• Operating Temp: -10°C to 50°C, Humidity ≤95%

Approvals

• EMC: FCC, CE-EMC, RCM

• Safety: UL, CB, CE-LVD

• Environment: CE-RoHS, WEEE, REACH
