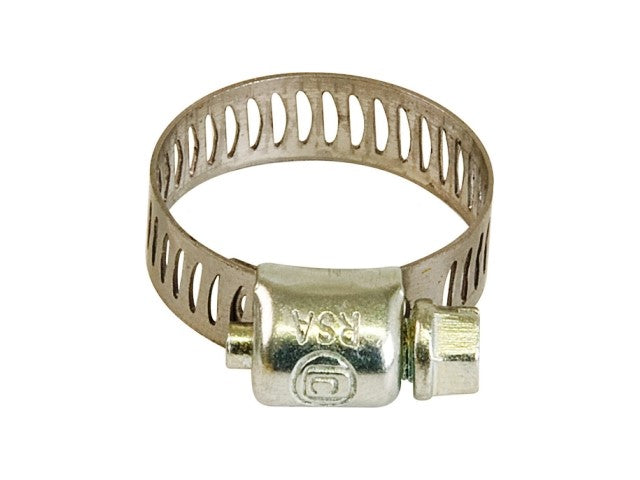

HOSECLAMP UNICLIPS MILD STEEL GM6 6-22MM (ONLY SOLD PER BOX
OF 10)
Lightweight ‘Econ’ or Micro Hose clamps are ideal for smaller
diameter and lighter duty applications such as air & fuel line
hoses
They are available in a standard range which has a 400 series
Stainless Steel band with zinc plated carbon steel screw and housing and
also in full stainless steel
The clamp’s design has a construction that is free of spot welding
and therefore a reduced potential for corrosion
The narrower 8mm perforated band permits relatively higher sealing
pressure with less torque than the standard 12mm band-width clamps
With the low profile and narrow one-piece housing, easy installation
in difficult areas is possible
The slotted 6mm hex head screw allows for screw-driver or socket
installation
Specifications:
The GM Series Economy Econ Micro Clamps
Ideally suited to general and automotive applications
Consists of a 400 series stainless steel band
Zinc electroplated carbon steel housing
Zinc electroplated, case hardened and slotted screw
CODE: USC0010
BARCODE: 6009619070125
HEIGHT: 5.0cm
LENGTH: 5.0cm
WIDTH: 5.0cm
WEIGHT: 0.07kg
NOMINAL WORKING RANGE – DIAMETER
MIN.: 6mm, 7/32 in
MAX.: 22mm, 7/8 in
TORQUE NM. SABS: 2.5Nm
