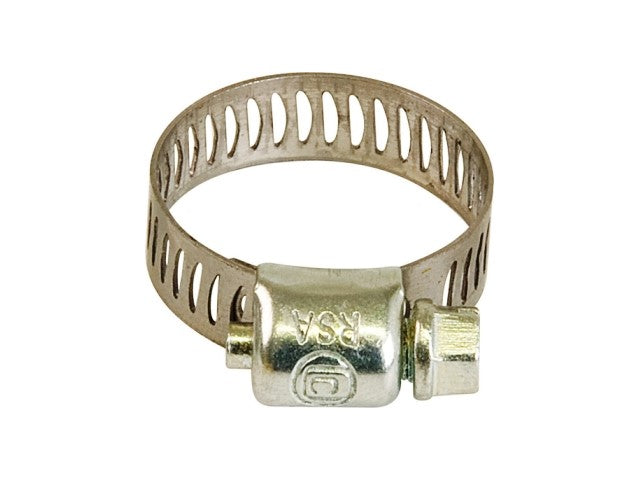

HOSECLAMP UNICLIPS MILD STEEL GS20 19-44MM (ONLY SOLD PER BOX
OF 10)
The re-usable Steel Fixed
Bridge
Worm-drive Hose Clamps are suitable
for all
plastic and rubber hoses
The high strength mechanically
interlocked construction has no spot welding to weaken resistance to
corrosion
The flexible band facilitates
handling and fitting
The screw thread fully penetrates
the perforated band, increasing the
strength
and reducing the risk of
the clamp
working loose
An 8mm slotted hex screw is
standard, but a 7mm hex is available on
request.
Specifications:
The GS
Economy Fixed Bridge
Clamp
Ideally suited to general and
automotive applications
Consists of a 400 series stainless
steel band
Zinc electroplated steel
housing
Zinc electroplated, case hardened
screw
CODE:
USC0030
BARCODE: 6009619070170
HEIGHT: 9.5cm
LENGTH: 6.5cm
WIDTH:
7.0cm
WEIGHT: 0.24kg
NOMINAL WORKING RANGE –
DIAMETER
MIN.: 19mm, 3/4 in
MAX.: 44mm, 1 3/4 in
TORQUE NM. SABS: 5.0Nm
