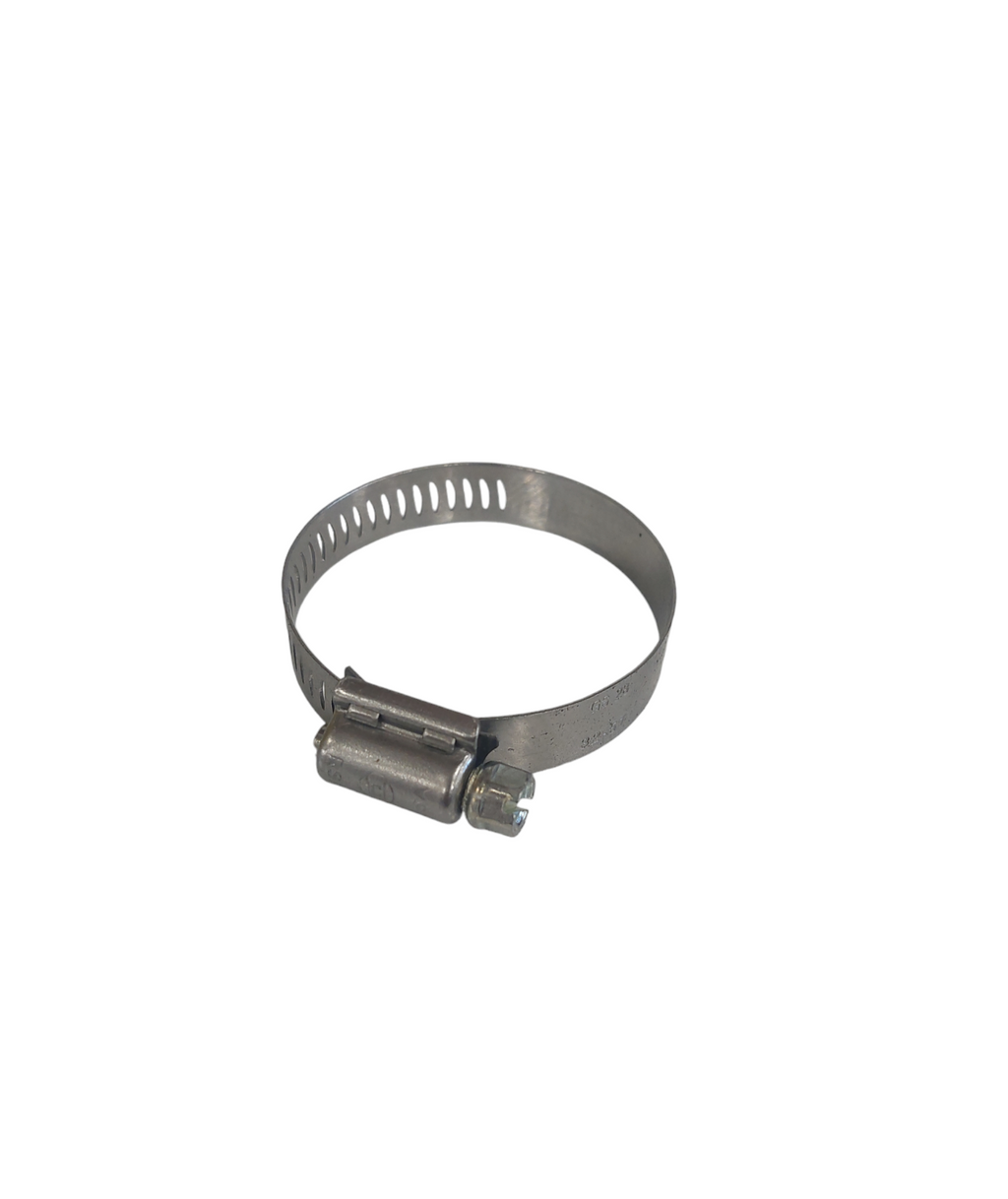

HOSECLAMP UNICLIPS STAINLESS STEEL GMS7/10 15-27MM (ONLY SOLD
PER BOX OF 10)
Lightweight ‘Econ’ or Micro Hose clamps are ideal for smaller
diameter and lighter duty applications such as air & fuel line
hoses
They are available in a standard range which has a 400 series
Stainless Steel band with zinc plated carbon steel screw and housing and
also in full stainless steel
The clamp’s design has a construction that is free of spot welding
and therefore a reduced potential for corrosion
The narrower 8mm perforated band permits relatively higher sealing
pressure with less torque than the standard 12mm band-width clamps
With the low profile and narrow one-piece housing, easy installation
in difficult areas is possible
The slotted 6mm hex head screw allows for screw-driver or socket
installation
Specifications:
The GMS Series Full Stainless Steel Econ Micro Clamps
Ideally suited to mining, marine,
agriculture and chemical applications; where extra resistance
against corrosion is required
Manufactured entirely from 300 series
Stainless Steel
CODE:
USC0200
BARCODE: 6009619070330
HEIGHT: 5.0cm
LENGTH: 5.5cm
WIDTH:
5.5cm
WEIGHT: 0.08kg
NOMINAL WORKING RANGE –
DIAMETER
MIN.: 15mm, 19/32
in
MAX.: 27mm, 1 1/6
in
TORQUE NM. SABS: 2.5Nm
