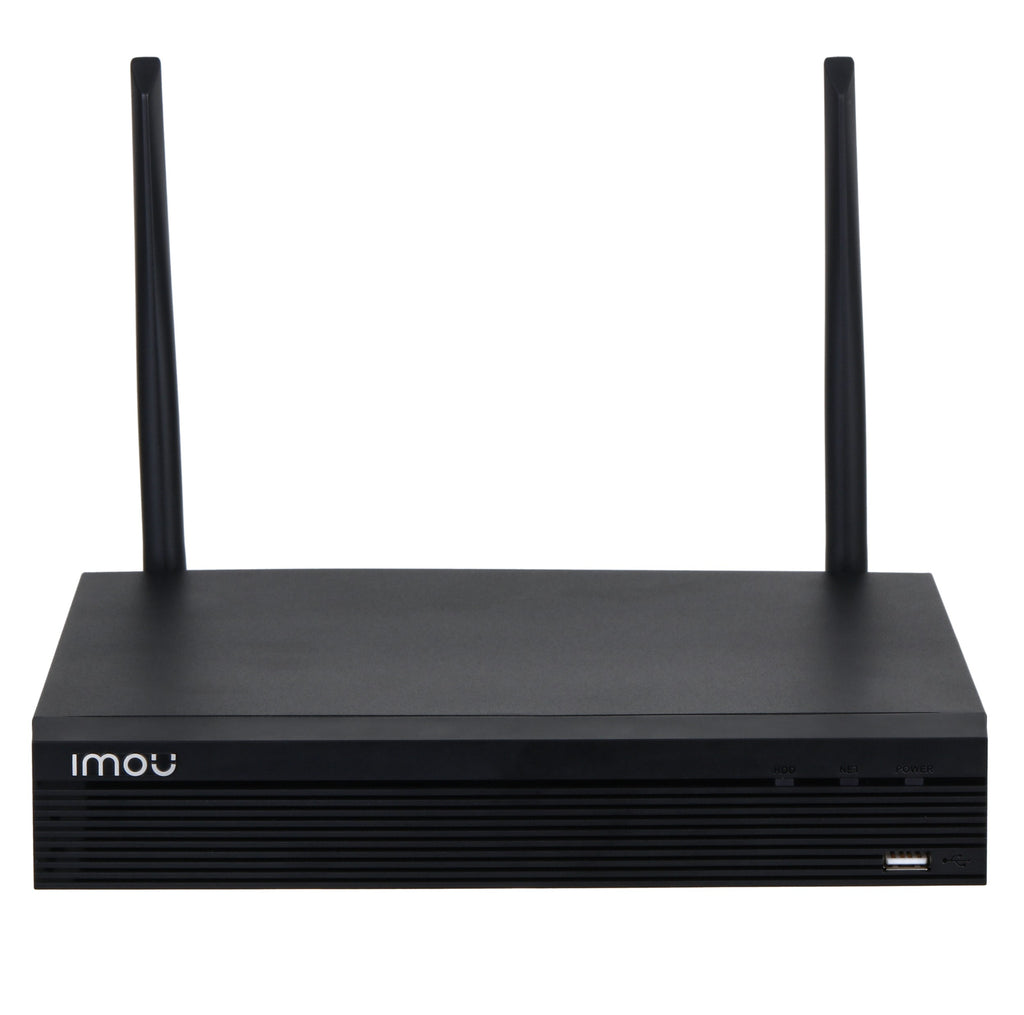

IMOU 8CH NVR – ONVIF Support (No HDD)
"• 1080P FHD Video
• Dual Antenna
• Automatic Pairing
• Wi-Fi Adaptive
• Smart H.265 Codec
• Mass Storage
• Two-way Talk
• Imou App"
NVR SPECIFICATIONS
System
- IP Camera Input: 4/8 Channels
- Wired Max. Input: 40Mbps
- Wireless Max .Input: 16Mbps
- Operation Display: WEB/GUI/Imou APP
Recoding & Decoding
- Resolution: 1080P/720P
-
Max Decoding: 1ch@6MP/2ch@4MP/4ch@1080P/8ch@720P
- Compression: H.265+/H265/H.264+/H.264
- Audio Compression: G.711A/G.711U/PCM/G726
Video
- Video In: 4/8 Channels
- Video Out: 1 HDMI/1 VGA
Function
- Recoder Mode: Manual/Alarm/Motion detection/Schedule
- Backup Mode: USB Device
- Playback: 1/4
- Storage: Up to 8TB HDD/Cloud Storage
- Multi-screen Display: 4ch: 1/4
8ch: 1/4/8/9
Network
- ONVIF Profiles T/S/G, CGI, SDK
- imou App: iOS, Android
- Wi-Fi: IEEE802.11b/g/n, 100m Open Field
- Internal Dual-antenna, 2×2 MIMO
General
- Power Supply: DC12V 1.5A
- Power Consumption: ≤10W(without HDD)
- Operationg Conditions: -10℃~+45℃(+14℉~+104℉)
- 10℅~90℅RH
- Dimensions(W×L×H): 260.3mm×247.3mm×44.7mm
- (10.25″ ×9.74″ ×1.76″ )
- Net Weight: 0.824kg(1.82lb)
- Certification: CE/FCC
Auxiliary Interface
2 x USB Ports
1 x SATA Port
1 x Network Port
1 x RCA In
1 x RCA Out
1 x HDMI Port
1 x VGA Port
1 x Power Port
