SYKES PULLER KIT INTERNAL AND EXTERNAL BEARING
155900
Hydraulic 1500
series
Removes gears, bearings, pulleys and
sprockets
Wide range of automotive and
industrial applications
Powered by 1500 series hydraulic
ram
Safe and easy to
use
8 tonnes of force with minimum
effort
Easy to adjust
Non-twisting for improved
stability
Supplied with nose piece for use on
centered shafts
Self centering and self
locking
Redesigned legs, improving
strength
The separator is a versatile tool
where a long reach is required to draw a bearing from a
shaft
The tapered edges of the bearing
separator provide all round support and can fit behind bearings where
normal puller legs cannot gain access
Makes 8 different twin/triple leg
pullers, plus heavy duty bearing separator kit and internal extractor
kit
Supplied in metal
case

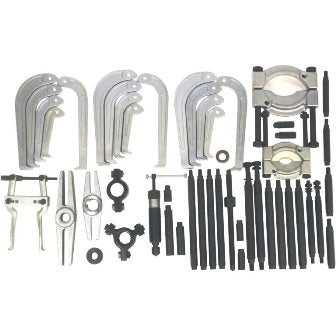

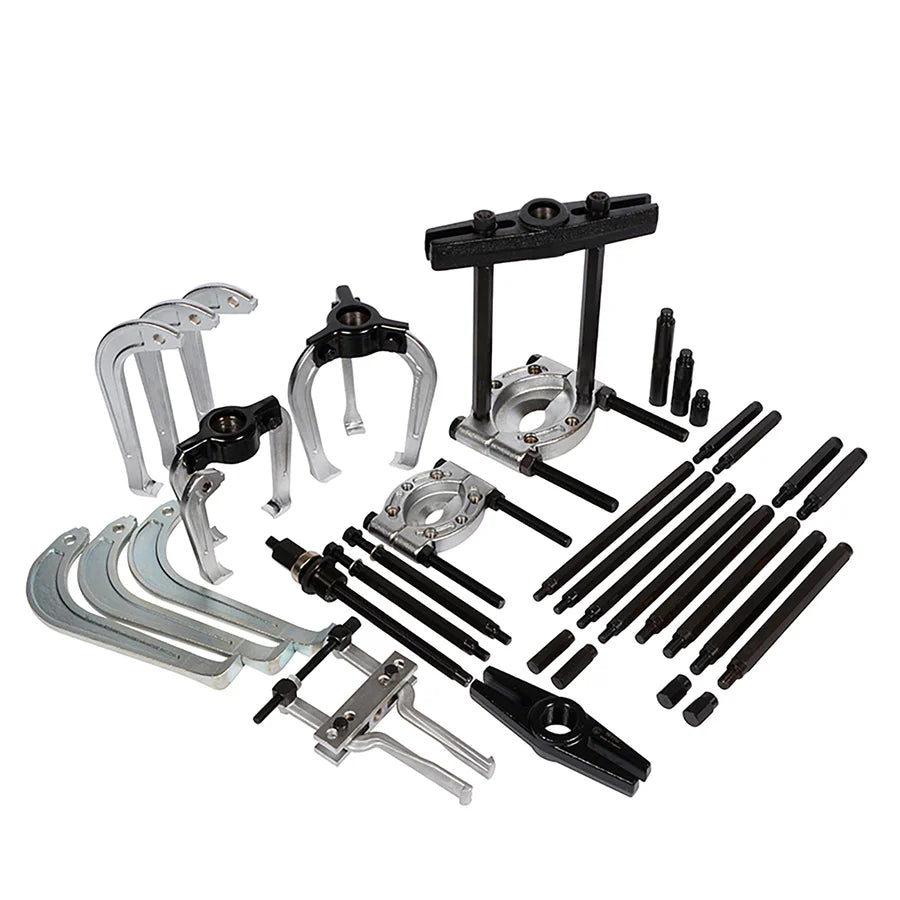

Contents:
1500 Series Hydraulic Ram With Nose
Piece
15241200 1 x Twin
Head
15341300 1 x Triple
Head
15242200 1 x Ram Extension -
50mm
15262400 1 x Ram Extension -
100mm
15272600 1 x Ram Extension -
150mm
15242400 3 x Legs -
100mm
15262600 3 x Legs -
150mm
15282800 3 x Legs -
200mm
15292900 3 x Legs - 250mm (Extra
Wide)
19311200 1 x Twin
Beam
09510000 1 x Separator
20-105mm
09311500 2 x Main
Rods
09311900 4 x Extension
Rods
09312300 2 x Extension Rods 5
inch
19321200 1 x Twin
Beam
09520000 1 x Separator
35-145mm
09321500 2 x Main
Rods
09321900 4 x Extension
Rods
09322300 2 x Extension Rods 5
inch
09350000 1 x Internal Race
Extractor
09311100 1 x Forcing Screw C/W
Nut
09312100 1 x Thrust
Race
09312200 1 x
Convertor
09312000 2 x
Protectors
09322000 2 x
Protectors
CODE:
SYK155900
BARCODE: 5012737796057
HEIGHT: 16.0cm
LENGTH: 42.5cm
WIDTH:
40.0cm
WEIGHT: 41.22kg
SPREAD MINIMUM TO
MAXIMUM: 20 – 250mm
REACH MAXIMUM: 250mm
EXTERNAL SPREAD MIN TO
MAX:
20 - 145mm
EXTERNAL REACH MAXIMUM: 876mm
INTERNAL REACH MINIMUM: 40 – 150mm
