SYKES TESTER COOLING SYSTEM PLANT
319 Series - Universal Expansion Plug
System
For use with hand pump or airline
adaptor - for HGV
Also compatible with '318 Series
threaded caps and adaptors to extend applications
coverage
Features a self-testing metal hand
pump and precision gauge, with specially designed pressure release valve
for safe depressurising of cooling systems
Designed to cover three types of
system test:- Leak Detection - Temperature Testing - Thermostat and
Thermo-Switch Operation
The special patented design of the
Expansion Plugs, features a tapered rubber cone to fit a variety of
radiator and header tank neck diameters. With a range of just 5 plug
sizes, it is possible to cover a very wide range of applications, from
small cars to commercial vehicles and heavy
plant.
The Safety Retaining Clamp has been
specially designed to provide added safety in certain applications, e.g.
plastic expansion bottles, situations of extreme cold, or very high
water temperatures, and when it is not practical to fully clean the
surfaces of the aperture neck
The Safety Retaining Clamp greatly
reduces the risk of the expansion clamp slipping from its fixed
position, particularly under high pressure, and it is recommended to be
used for all applications
Blanking caps are also provided with
the 319 Series System Testers, in order to perform radiator sealing
tests, off the vehicle
Temperature testing can be carried
out by using the thermometer in conjunction with the appropriate
expansion plug and by observing the change (or lack of change) in the
fluid temperature and by measuring the rate of change of
temperature

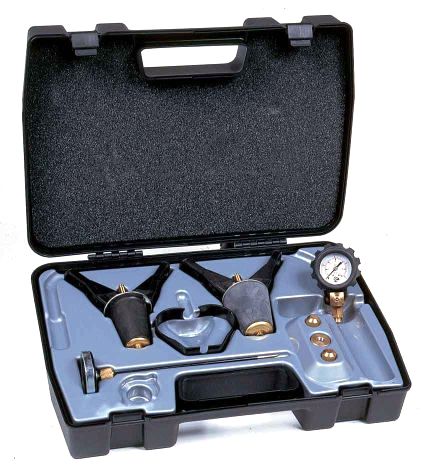

33190500 Contents
Airline adaptor and gauge assembly,
for fast pressurising of large capacity systems on commercial vehicles
and plant equipment
Universal expansion plugs x 2 (apps
range from 33 to 65mm apertures)
Safety Retaining
clamp
Thermometer
Optional Extra:
03191500 - Stepped Expansion Plug for
Mercedes - apps range from 27 to 44mm
CODE:
SYK331905
BARCODE: 5012737009831
HEIGHT: 12.0cm
LENGTH: 46.0cm
WIDTH:
33.0cm
WEIGHT: 2.71kg
