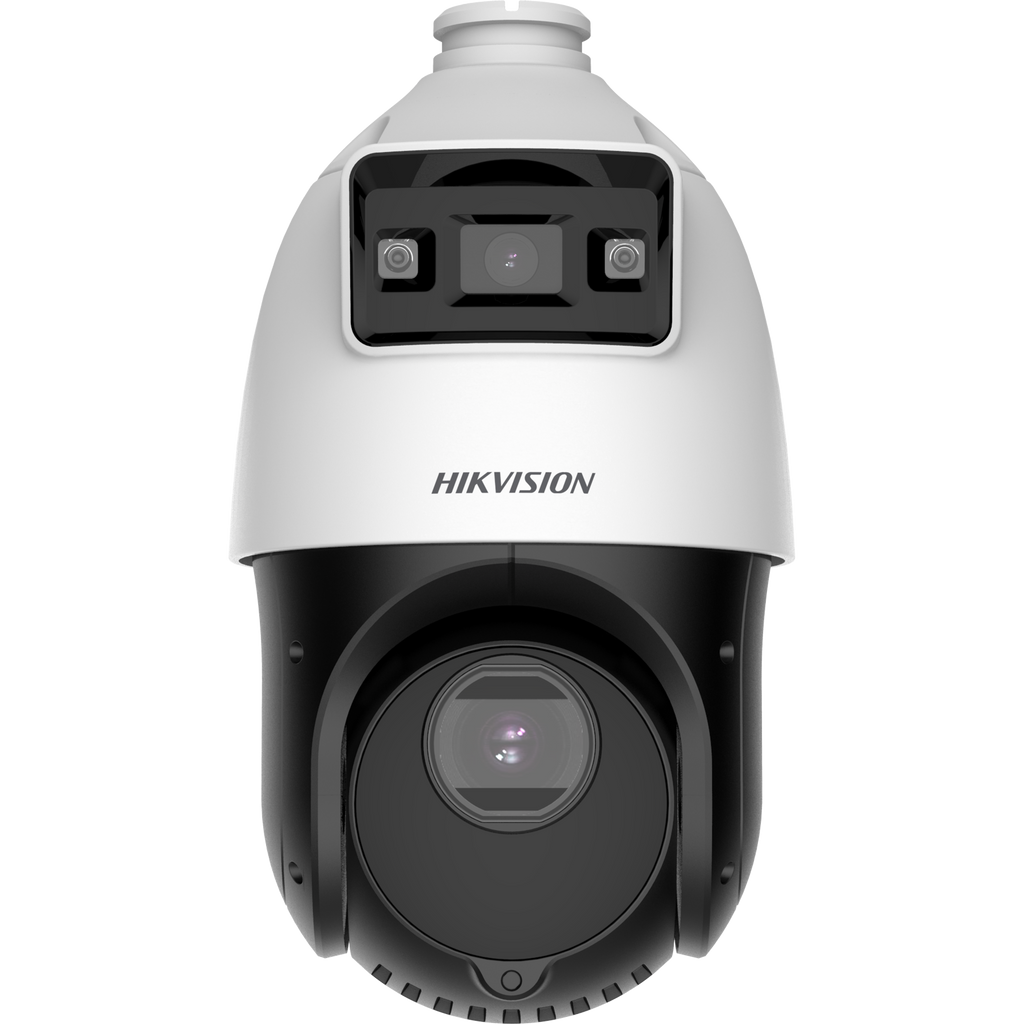

TandemVu 4MP PTZ + 4MP ColorVu Bullet – 25× Zoom, 100m IR, 30m White-Light, 12VDC/PoE+

Features

• Captures expansive areas with detailed 4 MP imaging

• Excellent low-light performance with DarkFighter and ColorVu technology

• PTZ 25× optical zoom and 16× digital zoom for close-up coverage

• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, and regional focus

• Night vision: PTZ IR up to 100 m, Bullet white light up to 30 m

• Power: 12V DC & PoE+

• Human and vehicle target classification with deep learning

Specifications

Camera

• Image Sensor: Bullet – 1/3" Progressive Scan CMOS; PTZ – 1/2.8" Progressive Scan CMOS

• Max Resolution: 2560 × 1440 (both channels)

• Min Illumination: Bullet – 0.0005 Lux (F1.0, AGC ON), 0 Lux with light; PTZ – Color 0.005 Lux, B/W 0.001 Lux, 0 Lux with IR

• Shutter Speed: 1 s – 1/30,000 s

• Day/Night: ICR

• Zoom (PTZ): 25× optical, 16× digital

• Slow Shutter: Yes

Lens

• Focal Length: Bullet – 2.8 mm; PTZ – 4.8–120 mm

• FOV: Bullet – H 96.1°, V 52.1°, D 113.3°; PTZ – H 55°–2.4°, V 33°–1.4°, D 61.5°–2.8°

• Focus: Auto / Semi-auto / Manual

• Aperture: Bullet F1.0; PTZ F1.6

• Zoom Speed (PTZ): 3.6 s

Illuminator

• PTZ: IR, up to 100 m

• Bullet: White Light, up to 30 m

• Smart Supplement Light: Yes

PTZ

• Pan Range: 360°; Tilt Range: -15° to 90° (auto flip)

• Pan/Tilt Speed: Configurable 0.1°–80°/s, preset Pan/Tilt 80°/s

• Presets: 300, Preset Freezing: Yes

• Patrol Scan: 8 patrols, up to 32 presets each

• Pattern Scan: 4 pattern scans

• Park Actions: Preset, pattern scan, patrol scan, auto/tilt/random/frame/panorama scan

• 3D Positioning, PTZ Status Display, Scheduled Tasks, Power-off Memory: Yes

Video

• Main Stream: 50 Hz – 25 fps, 60 Hz – 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub & Third Stream: 50 Hz – 25 fps, 60 Hz – 30 fps (various resolutions)

• Compression: H.265 / H.264 / MJPEG

• Bit Rate: 32 Kbps – 16,384 Kbps

• ROI: 8 fixed regions per stream

• SVC: Yes

Audio

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

• Bit Rate: 16–192 Kbps

• Sampling Rate: 8–48 kHz

• Noise Filtering: Yes

Network & Security

• Protocols: IPv4/IPv6, HTTP/HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP/RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket

• Live View: 20 channels

• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

• Users: 32, 3 levels (admin/operator/user)

• Security: HTTPS, 802.1X, MAC binding, IP filter, password protection

• Network Storage: NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect

• Browser Support: IE10+, Chrome 57+, Firefox 52+, Safari 12+


• Image Settings: Sharpness, saturation, brightness, contrast

• Day/Night Switch: Day, Night, Auto, Scheduled

• WDR: 120 dB; SNR ≥ 52 dB; Defog: Digital; Image Stabilization: EIS

• Image Enhancement: BLC, HLC, 3D DNR

• Privacy Mask: Bullet 8, PTZ 24 programmable polygon masks

• Regional Focus / Exposure: Yes

Interface

• Ethernet: RJ45, 10/100 M self-adaptive

• On-board Storage: MicroSD/SDHC/SDXC, up to 256 GB

• Audio: 1 input, 1 output

• Alarm: 1 input, 1 output

• Reset: Yes

Events & Smart Functions

• Basic: PTZ – motion detection, video tampering; both – alarm input/output, exceptions

• Smart: PTZ – line crossing, intrusion, region entrance/exit; Bullet – line crossing, intrusion, region entrance/exit; audio exception (both)

• Linkage: Bullet – FTP/NAS/memory card, notifications, email, alarms, recording; PTZ – same + PTZ actions

• Deep Learning: Face Capture (PTZ only)

General

• Power: 12VDC, PoE+; Max 24 W (including heater & supplement light)

• Dimensions: Ø166 × 375 mm

• Weight: 2.4 kg

• Material: ADC12

• Operating Conditions: -30 °C to 65 °C, <90% RH

• Functions: Mirror, password protection, watermark, IP filter, demist

Protection & Approval

• IP66, 6000 V Lightning, Surge, and Voltage Transient Protection
