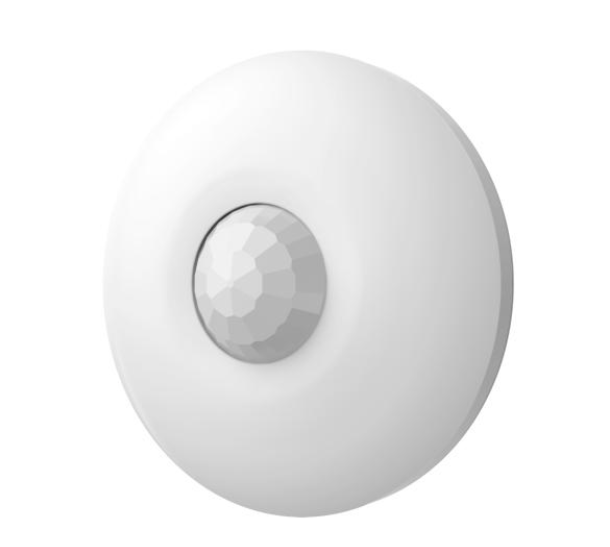

Hikvision Wireless Ceiling-Mount PIR – 12m / 360° Coverage, Tri-X Wireless, 1× CR123A Battery Included
Features
-
12m / 360° detection coverage
-
SEC (Smart Environmental Control) with advanced digital signal processing & 3D optics
-
Fully remote configurable via mobile app
-
Multiple enrollment methods for easy setup
-
Easy-replace battery with PCB protection
-
Frequency hopping for secure, jam-resistant communication
Specifications
Detection Performance
-
Detection method: Passive infrared
-
Detection range: 12m
-
Detection angle: 360°
-
Detection zones: 172
-
Detectable speed: 0.3–2 m/s
-
Sensitivity: Auto / Low
-
White light filter: 6500 lux
-
Digital temperature compensation: Supported
-
Creep zone protection: Supported
Feature
-
Digital processing: Supported
-
Sealed optics: Supported
-
Tamper protection: Front & rear
-
Environment temperature indicator: Supported
-
Signal strength indicator: Supported
Interface
Transmission
-
Technology: Tri-X wireless
-
Method: Two-way RF wireless
-
Frequency: 868 MHz
-
Security: AES-128 encryption
-
Transmission range (free space): 1.6 km
-
Frequency hopping: Supported
-
Enrolling method: Power-up / Remote ID / QR code
Electrical Characteristics
General
-
Operating temperature: –10°C to 55°C
-
Storage temperature: –20°C to 60°C
-
Operating humidity: 10% to 90%
-
Dimensions: φ101.2 mm × 32.9 mm
-
Weight: 109.5 g
-
Mounting height: 2.4 m to 4 m
-
Mounting method: Ceiling
-
Application: Indoor
