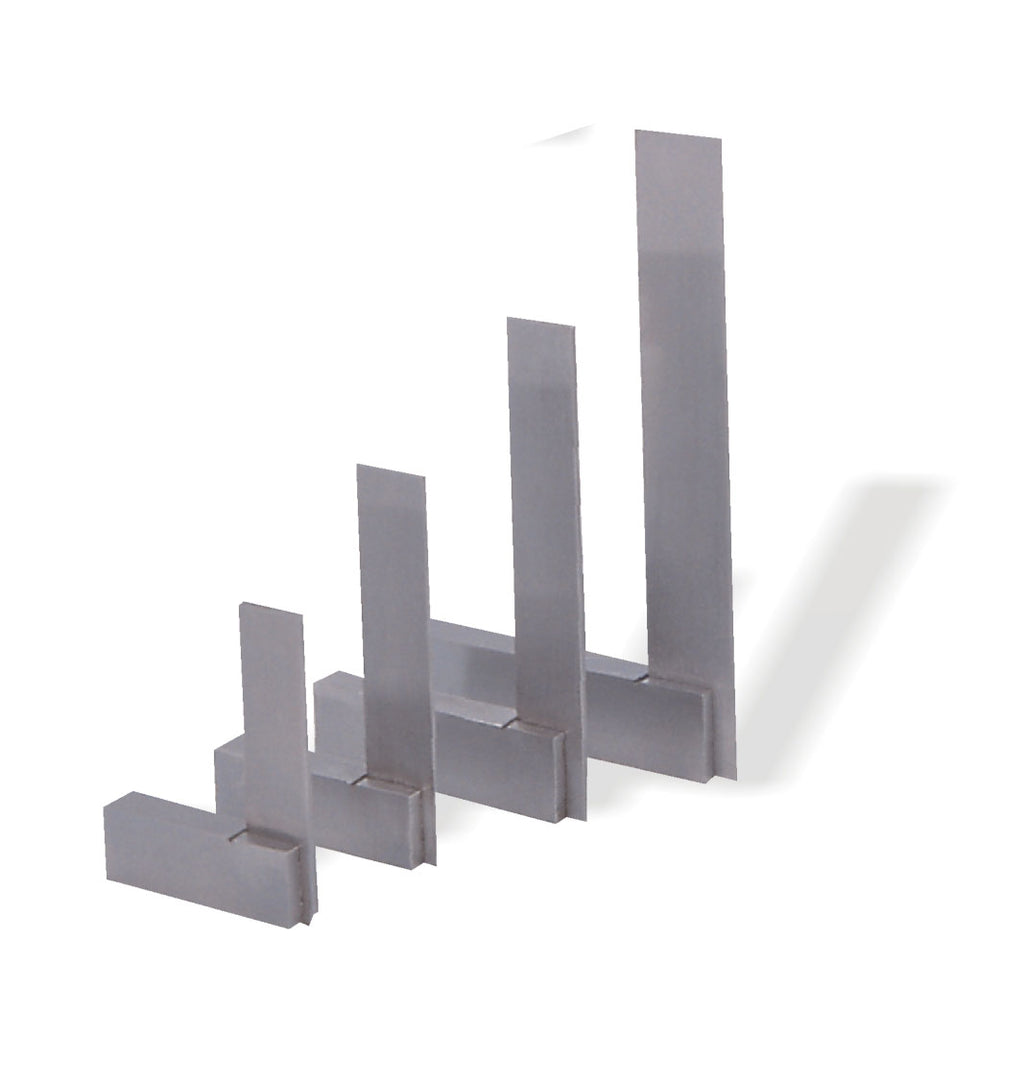

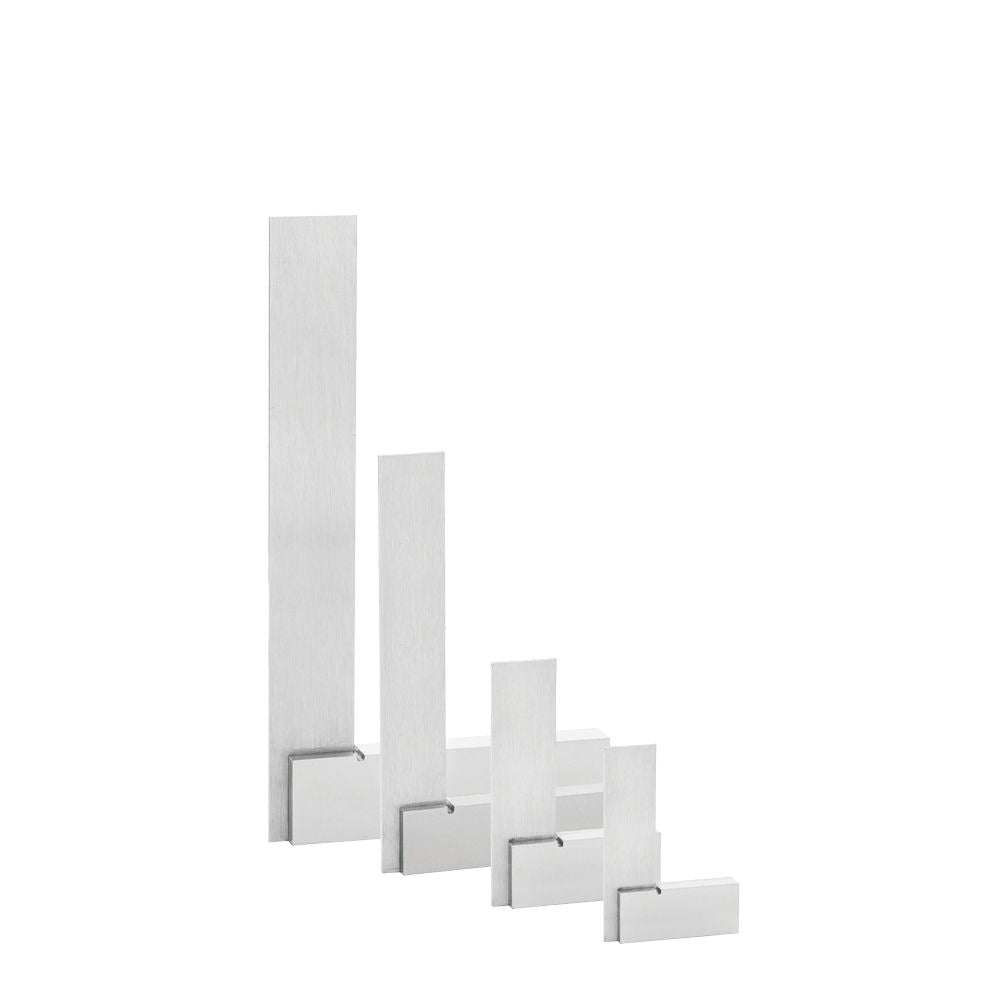

GROZ SQUARE ENGINEERS SSA/4 100MM
Internal and External Squareness as per
BS 939 Grade B
Useful for setting up and checking jobs where extreme accuracy is
required,
Hardened spring steel blades permanently fixed to the stock by means
of tapered self-locking rivets which ensure complete rigidity,
Blade and stock are precisely ground to ensure straightness and
parallelism,
Working edges of the blades are lapped for enhanced accuracy,
Groove on the inner corner of the stock aids in the clearance of burr
or dirt
CODE: GRO6505
BARCODE: 8901486010021
HEIGHT: 1.7cm
LENGTH: 13.5cm
WIDTH: 8.7cm
WEIGHT: 0.16kg
OVERALL LENGTH: 100mm
STRAIGHTNESS OF BLADE EDGES: 10 microns
FLATNESS OF WORKING FACES OF STOCK: 10 microns
PARALLELISM OF WORKING FACES OF STOCK: 5 microns
PARALLELISM OF SIDE FACES OF STOCK: 30 microns
SQUARENESS OF BLADE EDGES TO WORKING: 16 microns
FACES OF STOCK
LATERAL SQUARENESS OF BLADE TO BASE: 300 microns
OF STOCK
