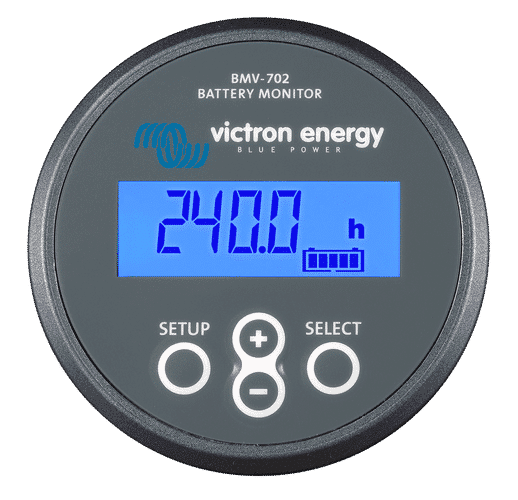

I-Victron Battery Monitor BMV-702

'Igeji kaphethiloli' yebhethri, inkomba yesikhathi sokuhamba, nokunye okuningi Umthamo webhethri osele uncike emahoreni ama-ampere asetshenzisiwe, amandla okukhipha amandla, izinga lokushisa kanye neminyaka yebhethri. Ama-algorithms e-software ayinkimbinkimbi ayadingeka ukuze kubhekwe zonke lezi ziguquko.
Eduze kwezinketho eziyisisekelo zokubonisa, ezifana ne-voltage, yamanje, namahora we-ampere asetshenzisiwe, uchungechunge lwe-BMV-700
futhi ibonisa isimo sokushaja, isikhathi sokuhamba, kanye nokusetshenziswa kwamandla kuma-Watts.
I-BMV-702 ifaka okokufaka okwengeziwe okungahle kuhlelwe ukukala i-voltage (yesekhondi
ibhethri), izinga lokushisa lebhethri, noma i-voltage emaphakathi (bona ngezansi).
I-Bluetooth Smart Sebenzisa i-Bluetooth Smart dongle ukuqapha amabhethri akho kuma-Apple noma ama-smartphones e-Android, amaphilisi,
MacBooks nezinye izisetshenziswa.
Kulula ukuyifaka Konke ukuxhumana kukagesi ku-PCB yokuxhuma ngokushesha ku-shunt yamanje. I-shunt ixhuma ku-
qapha ngentambo yocingo ye-RJ12 ejwayelekile. Kufakiwe: Ikhebula le-RJ 12 (10 m) nentambo yebhethri enefuse (2 m);
azikho ezinye izingxenye ezidingekayo.
Kufakwe futhi i-bezel yangaphambili ehlukile yokubukeka kwesibonisi esiyisikwele noma esiyindilinga, iringi yokuvikela yangemuva
ukukhweza nezikulufu zokufakela ngaphambili.
Kulula ukuhlela (nge-smartphone yakho!) Imenyu yokufaka esheshayo kanye nemenyu yokusetha enemininingwane enemibhalo ephenyayo isiza umsebenzisi lapho edlula
izilungiselelo ezahlukahlukene.
Noma, khetha isixazululo esisheshayo nesilula: landa uhlelo lokusebenza lwe-smartphone (i-Bluetooth Smart dongle
okudingekayo)
I-Midpoint voltage monitoring (BMV-702 kuphela) Lesi sici, esivame ukusetshenziswa embonini ukuqapha amabhange amakhulu nabizayo, manje ngesokuqala.
isikhathi esenziwe satholakala ngezindleko eziphansi, ukuqapha noma yiliphi ibhange lebhethri.
Ibhange lebhethri liqukethe uchungechunge lwamaseli axhunywe uchungechunge. I-voltage ye-midpoint yi-voltage ephakathi nendawo
ngentambo. Ngokufanelekile, i-voltage ye-midpoint ingaba ncamashi uhhafu wengqikithi ye-voltage. Nokho, ekusebenzeni,
ukuchezuka kuzobonakala, lokho kuncike ezintweni eziningi ezifana nesimo esihlukile sokushaja amabhethri amasha noma
amaseli, amazinga okushisa ahlukene, imisinga yokuvuza yangaphakathi, amandla nokunye okuningi.
Ukuchezuka okukhulu noma okwandayo kwamaphoyinti kagesi wephoyinti eliphakathi ukuya ekunakekelweni kwebhethri okungafanele noma ibhethri elihlulekile noma
iseli. Isenzo sokulungisa esilandela i-alamu ye-voltage emaphakathi singavimbela ukulimala okubi kakhulu
ibhethri. Sicela ubheke imanuwali ye-BMV ukuze uthole ulwazi olwengeziwe.
Izici ezijwayelekile - I-voltage yebhethri, yamanje, amandla, amahora ama-ampere asetshenzisiwe kanye nesimo sokushajwa
- Isikhathi esisele ngenani lamanje lokukhishwa
- I-alamu ebonakalayo nezwakalayo ehlelekayo
- Ukudluliselwa okuhlelekayo, ukuvala imithwalo engacacile noma ukusebenzisa ijeneretha lapho kudingeka
- 500 Amp ukuxhuma okusheshayo shunt kanye nekhithi yokuxhuma
- Shunt amandla okukhetha kufika ku-10.000 Amps
- Ichweba lokuxhumana le-VE.Direct
- Igcina izinhlobonhlobo zezenzakalo zomlando, ezingasetshenziswa ukuhlola amaphethini okusetshenziswa nempilo yebhethri
- Ububanzi be-voltage yokufaka ebanzi: 6,5 - 95V
- Ukulungiswa kokulinganisa okuphezulu kwamanje: 10 mA (0,01A)
- Ukusetshenziswa okuphansi kwamanje: 2,9Ah ngenyanga (4mA) @12V kanye no-2,2Ah ngenyanga (3mA) @ 24V
Izici ezengeziwe ze-BMV-702 Okokufaka okwengeziwe ukuze kukale i-voltage (yebhethri lesibili), izinga lokushisa noma i-voltage ye-midpoint, kanye
i-alamu ehambisanayo nezilungiselelo zokudlulisa.
I-BMV-700H: 60 kuya ku-385 VDC ububanzi bamandla Azikho izingxenye ezengeziwe ezidingekayo. Qaphela: afanele amasistimu anokususa okusekelwe phansi kuphela (isiqaphi sebhethri asinjalo
ihlukaniswe ne-shunt).
Ezinye izinketho zokuqapha ibhethri - Lynx Shunt VE.Can
Okwengeziwe mayelana ne-voltage emaphakathi Iseli eyodwa embi noma ibhethri elilodwa elibi lingacekela phansi ibhange elikhulu, elibizayo. Uma amabhethri exhunywe ku
series, isexwayiso esifike ngesikhathi singakhiqizwa ngokulinganisa i-voltage ye-midpoint. Sicela ubheke imanuwali ye-BMV,
isigaba 5.2, ukuze uthole ulwazi olwengeziwe.
Sincoma Ibhalansi Yebhethri (BMS012201000) ukuze ikhulise impilo yesevisi yamabhethri axhumeke ngochungechunge.
